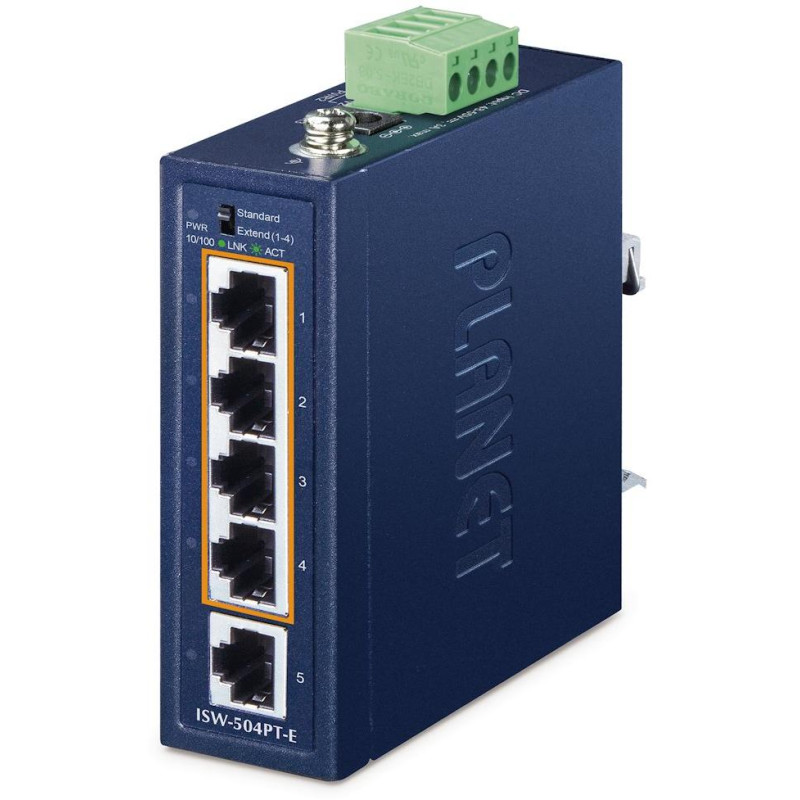

Planet ISW-504PT-E industrial compact switch, 1x10/100TX, 4x10/100TX PoE+ 802.3at 120W, -40~75°C, 48-55VDC, IP40

Compact industrial 5-port switch with PoE+ support for demanding industrial environments.

The PLANET ISW-504PT-E industrial switch offers 4 10/100Base-TX ports with IEEE 802.3at PoE+ support and 1 standard 10/100Base-TX port. Thanks to its robust metal chassis with IP40 protection and the ability to operate in extreme temperatures from -40 to +75 °C, it is ideal for deployment in demanding industrial environments.

The switch has a total PoE budget of 120 W and allows you to power connected devices with up to 30 W per port . The unique Extend mode allows you to transmit PoE power and data over a distance of up to 250 meters , which significantly exceeds the standard 100-meter Ethernet limit.

Extended PoE range
An integrated DIP switch allows you to switch between Standard and Extended modes. In Extended mode, the switch operates on ports 1-4 at 10 Mbps full-duplex, but can deliver full PoE power of 30W over distances of up to 250 meters, well beyond the standard 100-meter Ethernet limit.

Triple power supply for high reliability
The ISW-504PT-E offers triple input onWide voltage range soldering (48-55 V DC), which increases system reliability and availability. In the event of a power supply failure, the hardware failover function is automatically activated to ensure uninterrupted operation of the device.

Energy-saving technology
The switch uses advanced energy-saving technologies in line with ESG (Environmental, Social, Governance) principles. It supports cable length and link status detection to optimize power consumption. By implementing the IEEE 802.3az Energy Efficient Ethernet (EEE) standard, it can automatically reduce power consumption when network traffic is low.

BASIC SPECIFICATIONS

Ports: 5× 10/100Base-TX RJ-45 with auto-MDI/MDI-X

PoE ports: 4x IEEE 802.3af/at PoE+ (ports 1-4)

PoE power: up to 30 W per port, total budget 120 W

PoE pinout: 1/2(+), 3/6(-)

Switching capacity: 1 Gbps

Transfer rate: 0.744 Mpps at 64 bytes

MAC table: 1K entries

Power supply: 3× DC 48–55 V, redundant with reverse polarity protection

Consumption: max. 128 W

Operating temperature: -40 to +75 °C

Dimensions: 100 × 76.1 × 30.2 mm

Weight: 266g

Certification: FCC Part 15 Class A, CE

Resistance: IEC 60068-2-32 (drop), IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)
