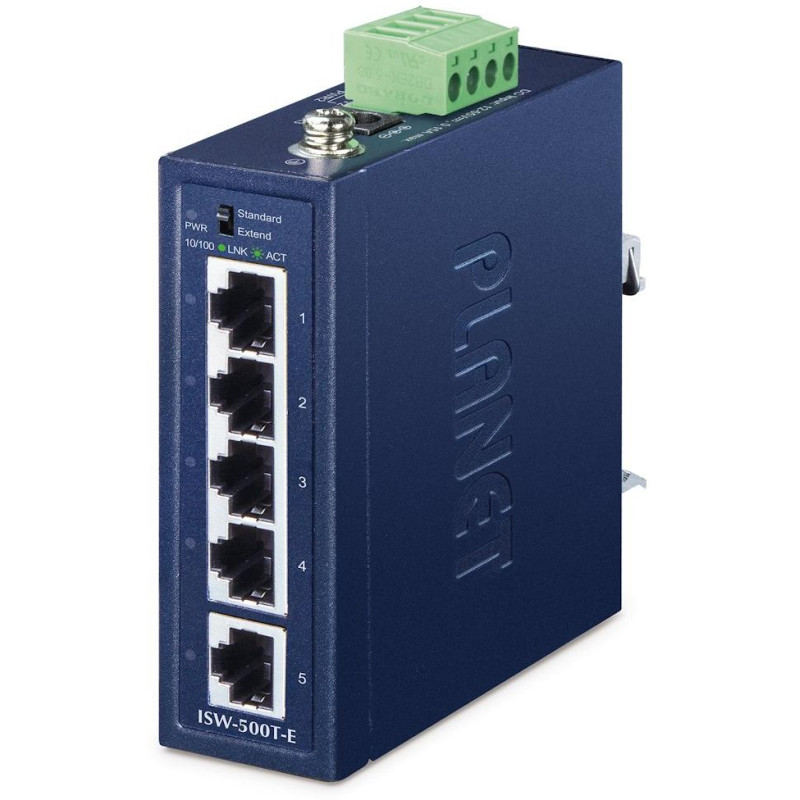

Planet ISW-500T-E compact industrial switch, 5x 10/100Base-TX, ESD, DIN, 12-55VDC, IP40, -40~75°C, 250m Extended

Compact industrial 5-port Ethernet switch for demanding environments with extended temperature range.

The ISW-500T-E industrial Ethernet switch is designed for use in demanding industrial applications with an operating temperature of -40 to +75 °C . It has 5 10/100Base-TX ports with automatic speed detection and support for auto-MDI/MDI-X function for easy connection without the need for crossover cables.

The switch features triple redundant power supply with a wide input voltage range of 12–55 V DC and automatic reverse polarity protection. The compact metal housing with IP40 protection and the possibility of mounting on a DIN rail or wall make this device an ideal solution for industrial IoT and AIoT networks.

Advanced energy savings
The switch implements advanced green networking technologies with automatic detection of link status and network traffic. When the device is less active, it automatically reduces power consumption, achieving higher energy efficiency.

Flexible installation and connectivity
The device supports DIN rail mounting and fixed wall mounting. All RJ-45 ports support auto-negotiation for optimal speed detection over Category 6, 5 or 5e cables. Standard auto-MDI/MDI-X functionality eliminates the need for special cables.

Industrial durability
Metal afterThe IP40 enclosure is certified to military standards for durability, including free-fall, shock, and vibration tests. The Switch operates reliably at altitudes up to 3,000 meters.

BASIC SPECIFICATIONS

Ports: 5× 10/100Base-TX RJ-45 with auto-MDI/MDI-X

Switching architecture: store-and-forward

MAC address table: 1K entries
Switch capacity: 1 Gbps

Throughput: 0.744 Mpps at 64 bytes

Power supply: 3× DC 12–55 V, redundant with polarity protection

Consumption: max. 1.1 W at full load

Operating temperature: -40 to +75 °C

Dimensions: 100 × 76.1 × 30.2 mm

Weight: 266g

Protection: IP40, metal housing

Certification: FCC Part 15 Class A, CE
