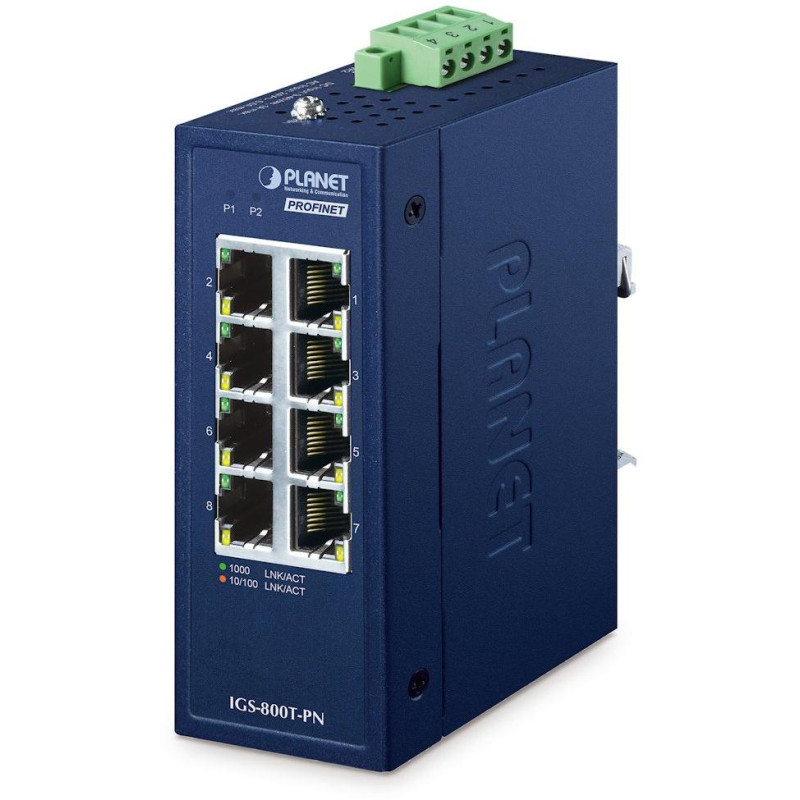

Planet IGS-800T-PN Compact Industrial PROFINET Switch 8x1Gb RJ45, -40 +75°C, IP30, EFT+ESD, 9-48VDC, fanless

Compact industrial 8-port Gigabit switch specially designed for PROFINET networks and demanding industrial environments.

The IGS-800T-PN switch is designed for use in automation networks, providing reliable and fast communication in accordance with PROFINET Conformance Class A (CC-A) . It features intelligent functionality to recognize PROFINET traffic and prioritize it over other Ethernet traffic, ensuring optimal performance in critical applications.

The robust metal housing with IP30 protection and an extremely wide operating temperature range of -40 to +75°C make the switch an ideal solution for factory automation, control systems and other industrial applications. The compact dimensions of 115 × 70 × 41 mm allow for easy installation even in limited space.

PROFINET optimization
The switch automatically recognizes PROFINET packets and prioritizes them over other network traffic. It supports PROFINET PTCP filtering for reliable communication and Strict Priority QoS for optimal performance.

Redundant power supply
Dual power input with wide voltage range ensures high system availability. If one source fails, the backup power is automatically activated without loss of operation.

Industrial durability
Certification according to IEC 60068-2-32 (free fall), IEC 60068-2-27 (shock) and IEC 60068-2-6 (vibration) guarantees reliability in demanding industrial conditions.

Plug and Play
All RJ-45 ports support 10/100/1000 Mbps auto-sensing and auto-MDI/MDI-X functionality, eliminating the need for special cables.

BASIC SPECIFICATIONS

Ports: 8× 10/100/1000Base-T RJ-45 with auto-MDI/MDI-X

Capacity: 16Gbps
MAC table: 4K entries
Buffer memory: 4 Mb
Jumbo frame: 9 KB
Power supply: redundant, DC 9-48 V + AC 24 V
Consumption: max. 4.8 W at full load
Working temperature: -40 to +75°C
Protection: IP30, metal housing, ESD + EFT protection
Dimensions: 115 × 70 × 41 mm
Weight: 305g
Mounting: DIN rail, wall mounting
Certification: FCC Part 15 Class A, CE, MIL-STD tests
