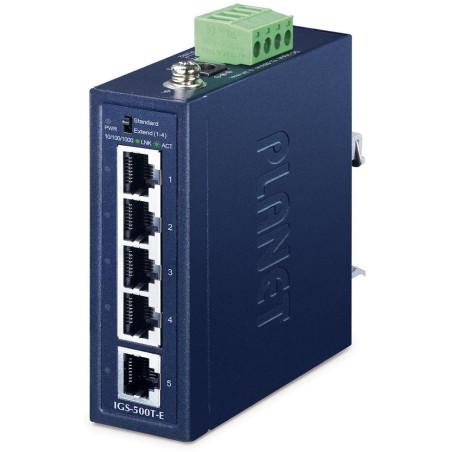

Planet IGS-500T-E
Compact industrial switch offering 5× RJ-45 10/100/1000 Base-T ports.
Thanks to its metal housing with IP40 certification, it withstands high temperatures from -40 to +75 °C , making it suitable for demanding operations. The switch's switching capacity is 10 Gbps and its throughput is 0.744 Mpps .
ESD + EFT protection up to 6 kV, DIN rail or wall mounting, dual DC 12–55 V power supply .
In Extend mode, data transmission on ports 1 to 4 can reach up to 250 meters , with the transmission speed reduced to 10 Mbps to ensure signal stability.
BASIC SPECIFICATIONS
Physical properties:
Ports: 5× 10/100/1000BASE-T RJ-45
Memory: 2k MAC addresses
Throughput: 10 Gbps bus, operational 0.744 Mpps (64 B)
Design: DIN rail, wall-mounted
Power supply: DC 12-55 V redundant, with reverse polarity protection function
Protection: ESD + EFT up to 6 kV
Operating temperature: -40 to +75 °C, humidity up to 90%
Dimensions: 100 × 76.1 × 30.2 mm
Weight: 266g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g (IEC-60068-2-27)
