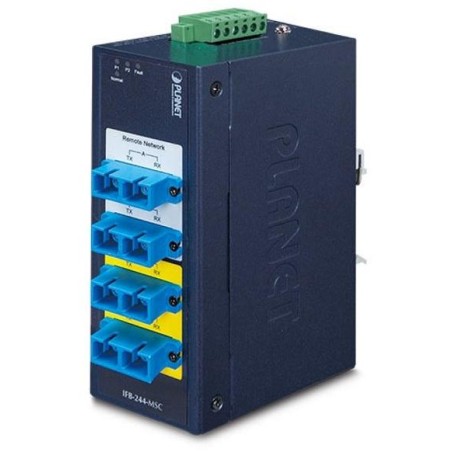

Planet IFB-244-MSC optical bypass switch, 4xSC multimode, dual 9-48VDC/24VAC, -40 +75°C

NETPLA2247
Grade
Write your review
PLANET IFB-244-MSC; Industrial optical bypass switch (4 x SC duplex multimode connector) that protects the network from failure and ensures network integrity during power outages. Redundant power supply 9-48 V DC or 24...
€353.83
Tax included
€292.42 Tax excluded
i
The amount of VAT applied is 21% for the country Czechia.
To order
Quantity
Out of stock

Ask about the product on WhatsApp


Business terms and conditions



Delivery policy



Return policy

help_outlineProduct inquiry by email
Description

PLANET IFB-244-MSC

Industrial optical bypass switch (4 x SC duplex multimode connector) that protects the network from failure and ensures network integrity during power outages.

Redundant power supply 9-48 V DC or 24 V AC, ESD surge protection, IP30 protection, operating temperature -40 to 75 °C, power consumption 0.54 W.






BASIC SPECIFICATIONS



Physical properties:



Ports: 4 x SC duplex (multimode)

Wavelength: 850nm / 1300nm

Working wavelength: 850 nm (±40) / 1300 nm (±40)

Insertion loss: typically 1.0 dB (max. 1.5 dB)

Return loss: better than 35 dB

Transmission speed: 100Gbps / 40Gbps / 10Gbps / 1Gbps / 100Mbps

Switching time (bypass): <8 ms

Design: DIN rail, wall-mounted

Power supply: 9 - 48 V DC dual with 24 V AC, total power consumption up to 0.54 W (power supply not included)

Protection: ESD air up to 8 kV, contact up to 6 kV, reverse polarity protection, switching alarm relay (24V/1A) in case of primary power failure


Operating temperature: -40 to 75°C

Dimensions: 135 x 87 x 50 mm

Weight: 485g



Industrial properties:

The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts

the device is vibration resistant (IEC-60068-2-6)

The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)





Product Details
PLANET Technology
NETPLA2247

Data sheet

Execution
DIN rail
Color
Blue
Warranty period for registration number (months)
60
Manufacturer
PLANET Technology
Powering the device
Redundant
Warranty length (months)
60
Processed
Approved
Weight (g)
485
Dimensions
135 × 87 × 50mm
Outdoor use
No
PoE support
No
Port speed
100/40/10/1/0.1 Gbps
Operating temperature min. (°C)
-40
Operating temperature max. (°C)
75
MicroSD card support
No
Display
No
HIND
No
Management
No
Degree of protection
IP30
Interface
SC multimode
Conformity
CE, FCC
Input voltage (V)
24 (AC)
Fanless
Yes
EN50155 approval
No
Total number of ports
4
RS-232 port
No
IPv6 support
No
IGMP
No
PoE input
No
PoE output
No
OSI layer
L2
Warranty option 36 months [%]
0
MODBUS support
No
Stackability
No
Optical fiber diameter
50/125
Zboží určeno pro
Commercial - pro profesionální použití
