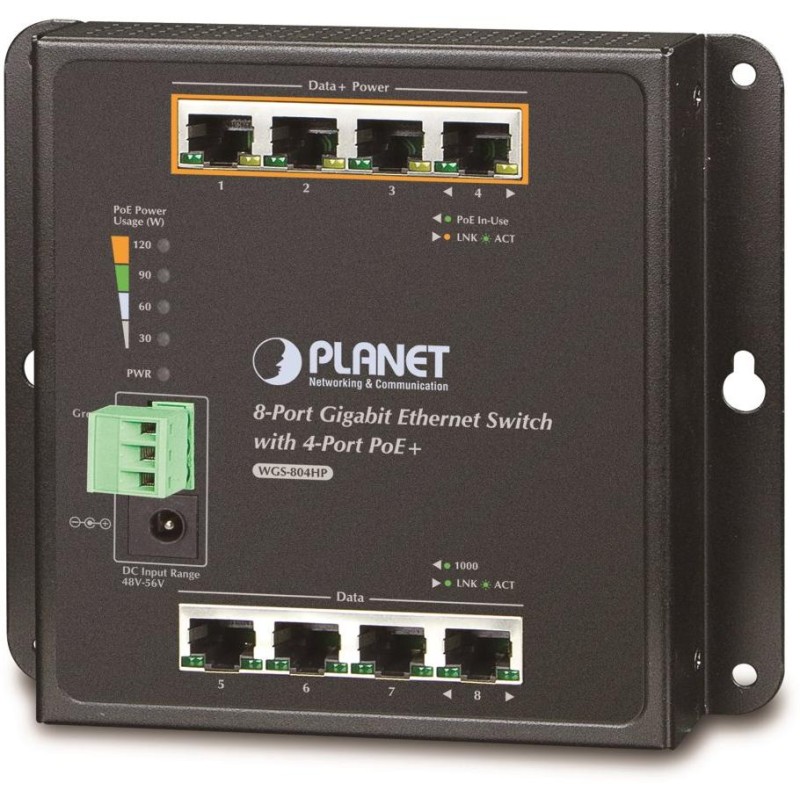

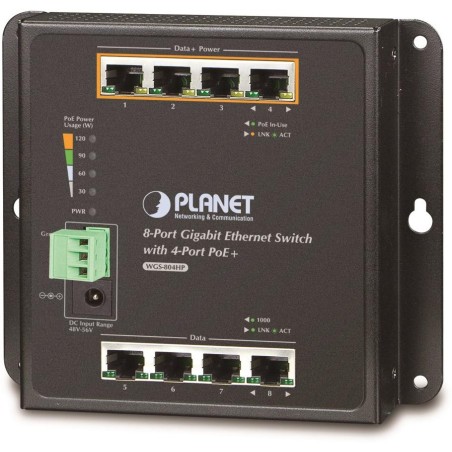

PLANET WGS-804HP
Gigabit switch with 8 1000Base-T ports, 4 ports with 802.3at PoE injector, total power up to 120W.
Wall or DIN installation, metal design IP30, resistant to drops and vibrations. ESD+EFT port protection, fanless.
Gigabit 8-port switch with 4x PoE (power over ethernet) ports for centralized power supply of devices over Ethernet such as IP cameras, WiFi elements or VOIP phones. A total of 120W of power is available.
The device is suitable for installation on a wall or directly into elevators, the construction is resistant to falls and vibrations, including IP30 protection.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8 x RJ-45 10/100/1000BASE-T + 4 x PoE IEEE 802.3af / 802.3at
Memory: 8k MAC addresses, 1Mbit buffer
Throughput: 16 Gbps bus, operational 12 Mpps (64B)
Transmission support: JumboFrame 9KB
Design: DIN rail, wall-mounted
Power supply: 48-56V DC power supply, jack or PIN terminal, total power consumption up to 140W (power supply not included)
Protection: ESD up to 6kV, EFT up to 6kV
Operating temperature: -10 - 60°C
Dimensions: 148 x 134 x 25 mm
Weight: 510g
POE function:
Total power output: 120 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 4 x up to 30 W
Power supply type: End-span
Advanced features: automatic detection of powered device
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
