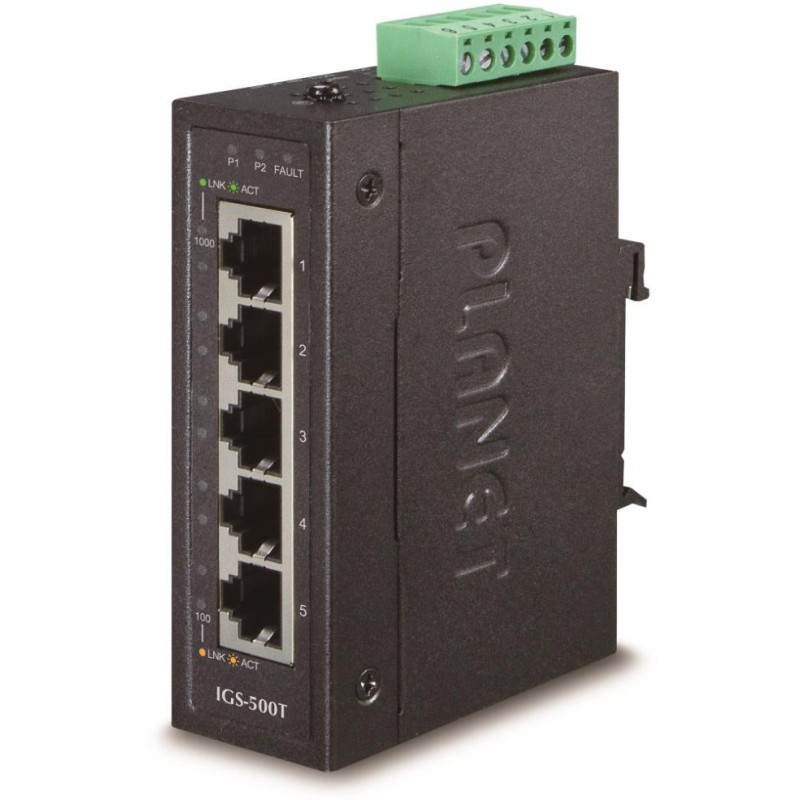

Planet IGS-500T, 5x 1000Base-T, DIN, IP30, extended temperature range -40 to +75C, ESD+EFT up to 6kV

PLANET IGS-500T

5-port switch and converter for industrial applications. 5 1000Base-T ports.

Redundant power supply option in the range of DC 12-48V or AC 24V, aluminum housing, IP30 protection, operating temperature -40~75°C.

Surge protection for LAN and power ports up to 6kV. DIN rail or wall mounting.

Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.

The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).

BASIC SPECIFICATIONS

Physical properties:

Ports: 5 x RJ-45 10/100/1000BASE-T

Memory: 4k MAC addresses, 1Mb buffer

Throughput: 10 Gbps bus, operational 7.4 Mpps (64B)

Transmission support: JumboFrame 9K

IP protocol version: IPv4, IPv6

Design: DIN rail, wall-mounted

Power supply: redundant DC 12-48V or AC 24V power supply, total power consumption up to 3.6W (power supply not included)

Protection: ESD up to 6kV, reverse polarity protection, power connection on the terminal block, location on the side panel (does not interfere with wall mounting)

Operating temperature: -40°C - 75°C, humidity up to 95%

Dimensions: 104 x 70 x 30 mm

Weight: 252g

Industrial properties:

The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts

the device is vibration resistant (IEC-60068-2-6)

The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)

electrical safety according to CE EN-60950

EMC Electronic Compatibility (EMI):

ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment

EMC immunity requirements (EMS):

ČSN EN 55024 A1:2015 - Information technology equipment

ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment

ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD

ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields

ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT

ČSN EN 61000-4-5:2014 - Surge and overvoltage

ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields

ČSN EN 61000-4-8:2009 - Power frequency magnetic field

ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
