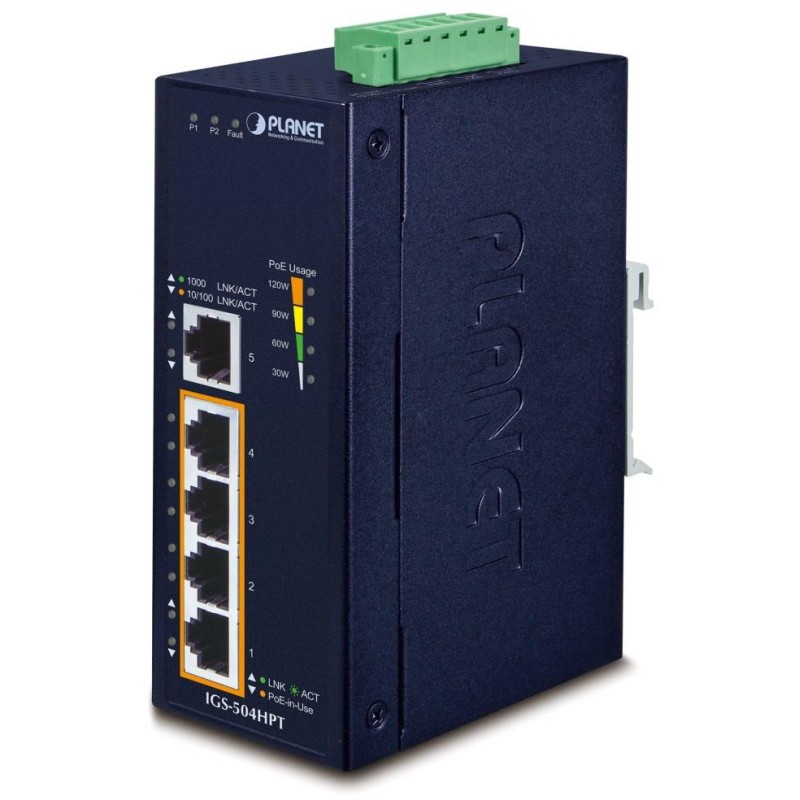

PLANET IGS-504HPT
Industrial switch and converter with PoE+ (802.3at/at), 5 10/100/1000Base-T ports , 4x PoE+ injectors ( up to 36 W/port ) with a total power of 120 W.
Possibility of redundant power supply DC 12-56 V, IP40 protection , metal housing, operating temperature -40 to +75 °C , fanless (without fans), LED indication of PoE usage.
Surge protection for LAN and power ports up to 6 kV, DIN rail or wall mounting (both sets included).
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. Extended temperature range version of the series switches.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
As a PoE switch, it allows you to directly power up to 4 end devices according to the IEEE 802.3af/at standard, making it an ideal element for applications with reduced power options.
BASIC SPECIFICATIONS
Physical properties:
Ports: 5x RJ-45 10/100/1000Base-T
Memory: 4K MAC addresses, JumboFrame 9 KB
Throughput: 10 Gbps bus, operational 7.44 Mpps
Design: DIN rail, wall-mounted
Power supply: DC 12-56 V redundant power supply, connection possible from two different sources (not included), own power consumption up to 7.02 W
Protection: ESD up to 6 kV contact, up to 8 kV air, reverse polarity protection
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 135 x 87 x 50 mm
Weight: 600g
PoE function:
Total power output: 120 W, IEEE 802.3af, IEEE 802.3at
Number of injectors: 4x up to 36 W
Power supply type: End-span
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
