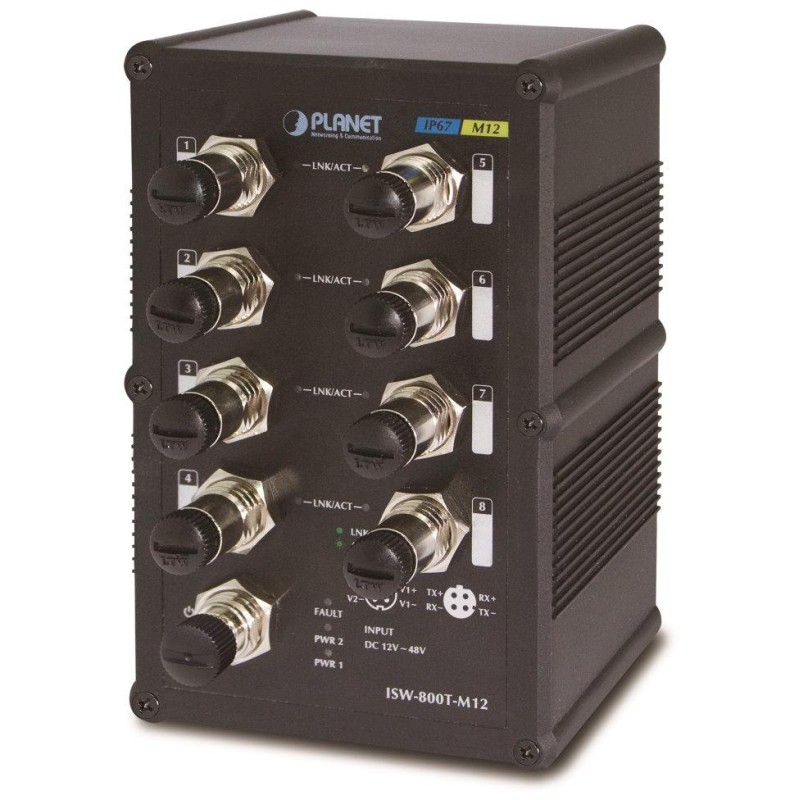

Planet ISW-800T-M12 waterproof industrial switch, 8x 10/100Mbps M12, ESD, DIN, IP67, -40~75°C, 12-48VDC

PLANET ISW-800T-M12

8-port 100Mbit switch. Redundant power supply DC 12-48V, power consumption <4W.

ESD port protection. IP67 protection, aluminum housing, extended operating temperature -40-75°C. DIN rail or wall mounting.

Industrial Ethernet switches are designed for demanding operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. Versions of the switches of the series with an extended temperature range and waterproof design with the possibility of application in vehicles according to EN50155 .

The ISW series switches are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).

BASIC SPECIFICATIONS

Physical properties:

Ports: 8 x M12 10/100BASE-TX 4-pin D-coded F, 1 x M12 5-pin A-coded M

Memory: 2k MAC addresses

Throughput: 1.6 Gbps bus, 1.19 Mpps operational

Design: DIN rail, wall-mounted

Power supply: 12-48V DC redundant power supply, connection possible from two different sources (not included), total power consumption up to 4W

Protection: ESD up to 6kV, EFT up to 6kV

Operating temperature: -40°C - 75°C, humidity up to 90%

Dimensions: 163 x 103 x 53 mm

Weight: 976g
