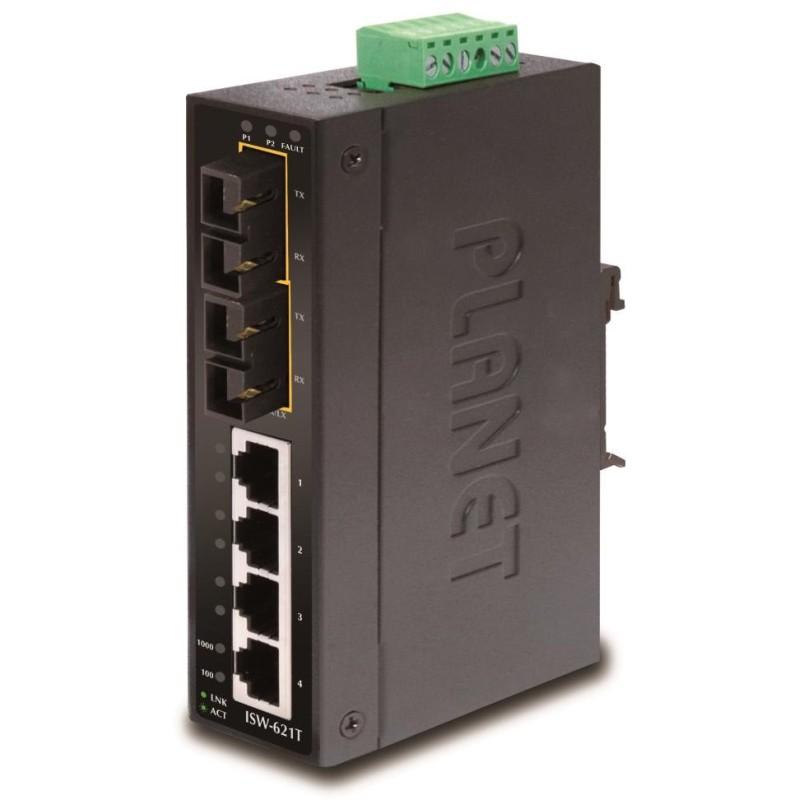

PLANET ISW-621TS15
6-port switch and converter for industrial applications. 4 10/100Base-TX ports, 2 100Base-FX optical ports, SC connectors, singlemode, range 15km.
Redundant power supply in the range of 12-48V DC, IP30 protection, aluminum housing, operating temperature -40~75°C. Mounting on DIN rail or directly on the wall.
Industrial Ethernet switches are designed for harsh operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
The ISW series switches are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
BASIC SPECIFICATIONS
Physical properties:
Ports: 4 x RJ-45 10/100Base-TX, 2 x 100Base-FX
Memory: 2k MAC addresses, 1 Mb buffer
Throughput: 1.2 Gbps bus, operational 0.89 Mpps (64B)
Design: DIN rail, wall-mounted
Power supply: 12-48V DC redundant, connection possible from two different sources (not included), total power consumption up to 16W
Protection: ESD up to 6KV DC, EFT up to 6KV DC, reverse polarity protection, power connection on the terminal block, location on the bottom panel (does not interfere with wall mounting)
Operating temperature: -40 to 75°C
Dimensions: 135 x 97 x 32 mm
Weight: 442g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
DIN rail mounting :
Wall mounting using the supplied frame :
