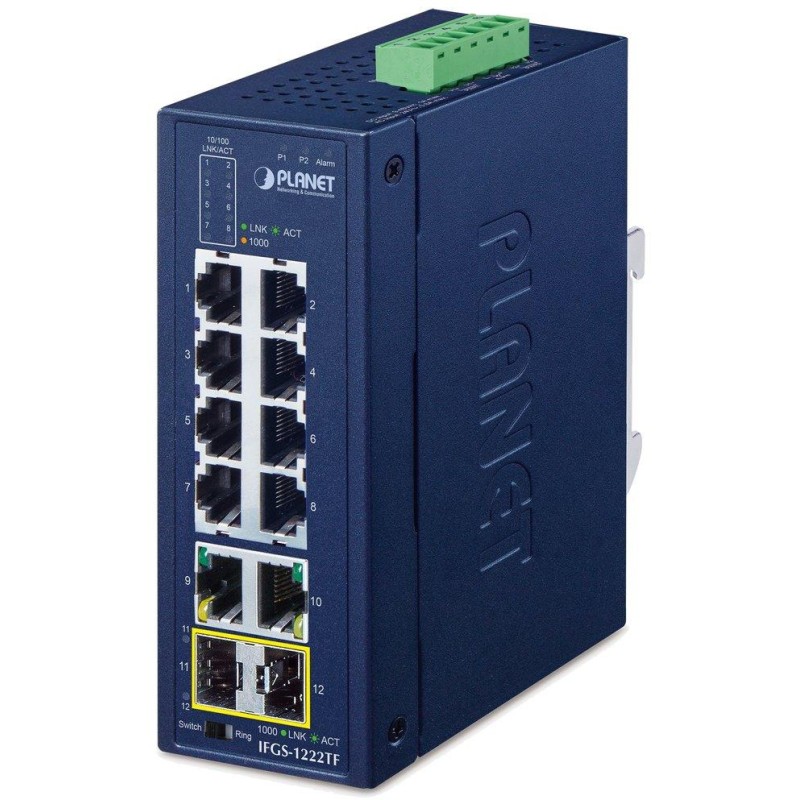

PLANET IFGS-1222TF
Highly durable industrial switch, 8× RJ-45 10/100Base-TX auto-MDI/MDI-X, 2× RJ-45 10/100/1000 Base-T auto-MDI/MDI-X, 2× SFP 1000 Base-SX/LX/BX.
Redundant power supply option in the range of DC 9–48 V or AC 24 V , IP30 protection, metal design, ESD up to 6 kV, operating temperature -40 to +75 °C , mounting on a DIN rail or directly on the wall.
Industrial Ethernet switches are designed for demanding operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
The IFGS series switches are easily installed on a standard DIN rail or directly on a wall , enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
The IFGS-1222TF supports super-fast ring redundancy technology and is equipped with a fast self-healing function to prevent interruptions and external interference. The dual SFP ports include advanced ring data recovery via DIP switch. In a simple ring network with 8 units , the data link recovery time can be up to 1ms .
Due to the differences between the One Key Ring and ERPS Ring functions available in PLANET industrial devices, the two functions are not compatible with each other. The IFGS-620TF One Key Ring function offers easier and faster deployment via DIP switch settings .
BASIC SPECIFICATIONS
Physical properties:
Ports: 8× 10/100BASE-TX RJ-45, 2× 10/100/1000BASE-T RJ-45, 2× 1000BASE-X SFP
Memory: 4K MAC addresses, Jumbo Frame 16 KB
Throughput: 9.6 Gbps bus, 7.14 Mpps operational (64 B)
Design: DIN rail, wall-mounted
Power supply: DC 9–48 V or AC 24 V (redundant), total power consumption up to 6 W
Protection: ESD up to 6 kV, reverse polarity protection
Operating temperature: -40 to +75 °C
Dimensions: 135 × 86.4 × 50 mm
Weight: 545g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g (IEC-60068-2-27)
