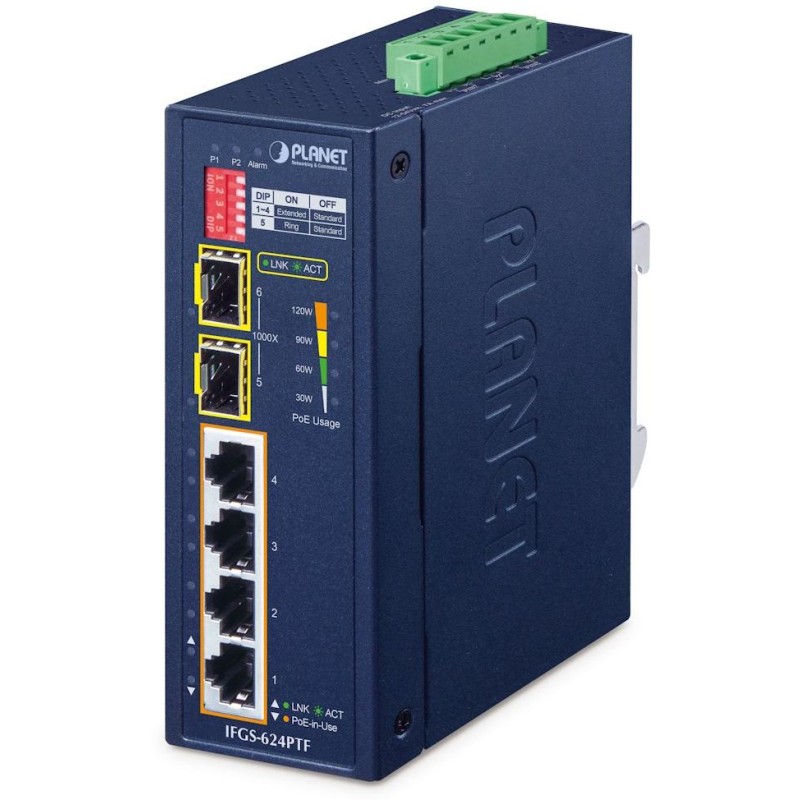

PLANET IFGS-624PTF
Unmanaged industrial L2 PoE switch with 4× 10/100 Base-TX RJ-45 and 2× 1000Base-X SFP . Ports 1–4 support PoE+ power (802.3at), with a total power of up to 120 W.
Alarm output in case of failure, ESD protection up to 6 kV, IP40 protection, metal housing, operating temperature -40 to +75 °C , mounting on DIN rail or directly on the wall, DIP switch, redundant power supply DC 12–54 V.
PROFINET Traffic with Higher Delivery Priority
The switch offers a new feature that improves support for recognizing PROFINET (ring topology) traffic and provides it with higher delivery priority. Once the switch detects PROFINET data traffic, it will prioritize it and then process other Ethernet traffic. This enhanced feature makes the IFGS-624PTF an ideal industrial unmanaged switch for faster PROFINET (ring topology) communication.
Industrial Ethernet switches are designed for demanding operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
IGS series switches are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology even in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
- Fast connection recovery in ring topology - just 1ms in a network with 8 devices
- PROFINET protocol support with traffic prioritization using QoS for industrial environments
- Extended PoE mode allows power supply up to 250 meters at 10 Mbps
- LED indicators for monitoring the current status of PoE power usage (30W, 60W, 90W, 120W)
- Automatic switching between power sources for maximum reliability (redundant power supply)
- DC-DC conversion technology to convert 12-54V input voltage to 54V PoE output
- 3 mounting options: DIN rail, wall mount and side wall mount for space saving
- Supports fiber optic cable connections up to 120 kilometers using appropriate SFP modules
- High resistance to drops, vibrations and shocks (IEC-60068-2-32/27/6)
- Automatic detection and configuration for Plug and Play deployment in industrial networks
- Certified to FCC Part 15 Class A and CE standards for industrial environments
- Ideal for CCTV systems, wireless access points and VoIP devices in harsh environments
- Operation in extreme temperatures from -40 to +75 °C with IP40 protection in a metal housing
- Jumbo Frame support up to 16 KB for efficient transmission of large data packets
- ESD and surge protection up to 6 kV for reliable operation in industrial environments
BASIC SPECIFICATIONS
Physical properties:
Ports: 4x 10/100Base-TX RJ-45, 2x 1000Base-X SFP
Memory: 4k MAC addresses
Throughput: 4.8 Gbps bus, 3.57 Mpps operational (64B)
Transmission support: JumboFrame 16 kB
Design: DIN rail, wall-mounted
Power supply: redundant, DC 12–54 V, power consumption up to 7 W without PoE, max. 140 W with PoE (power supply not included)three)
Protection: ESD up to 6 kV contact, up to 6 kV air, surge protection up to 6 kV DC
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 135 × 86.1 × 50 mm
Weight: 613g
PoE function:
Total power supply: max. 120 W
Number of injectors: 4× up to 36 W
Power type: End-span, 802.3at
Advanced features:
protection (of a circuit) against interference between ports
automatic detection of powered device
PoE with a range of up to 250 m
Extended 10 Mb
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g (IEC-60068-2-27)
