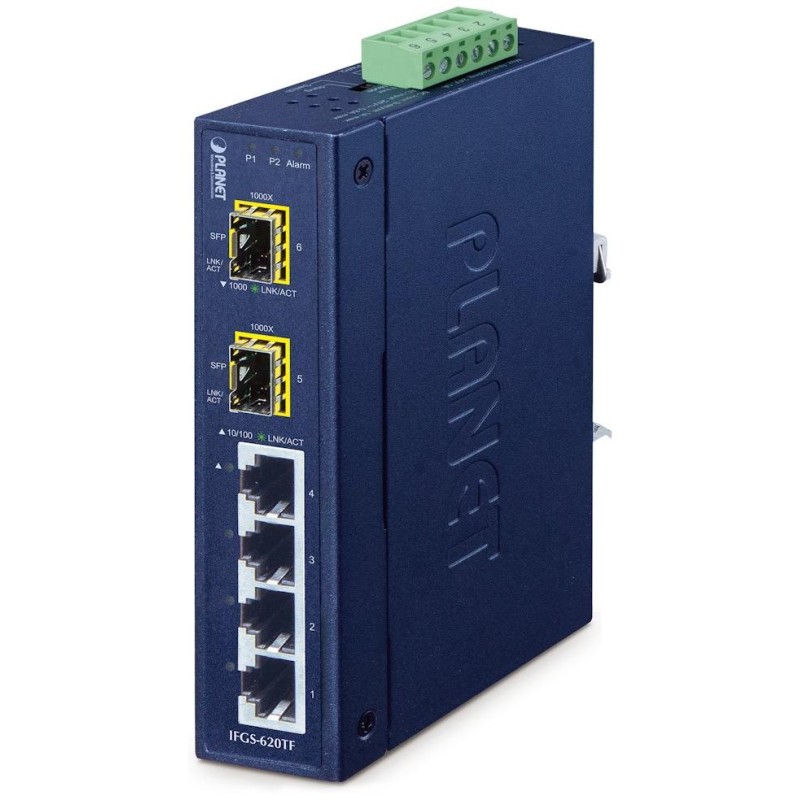

PLANET IFGS-620TF
Unmanaged industrial L2 switch with 4× 10/100 Mb/s RJ-45 ports and 2× GbE SFP slots, power consumption up to 3.4 W, redundant power supply. Data recovery via DIP switch.
Alarm output for power failure, ESD protection up to 6 kV, IP30 protection, metal housing, fanless, operating temperature -40 to +75 °C , DIN rail mounting or directly on the wall, dual power supply DC 9-48 V or AC 24 V.
Industrial Ethernet switches are designed for demanding operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
The IFGS series switches are easily installed on a standard DIN rail or directly on a wall , enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
The IFGS-620TF supports super-fast ring redundancy technology and is equipped with a fast self-healing function to prevent interruptions and external interference. The dual SFP ports include advanced ring data recovery via DIP switch. In a simple ring network with 8 units , the data link recovery time can be up to 1ms .
Due to the differences between the One Key Ring and ERPS Ring functions available in PLANET industrial devices, the two functions are not compatible with each other. The IFGS-620TF One Key Ring function offers easier and faster deployment via DIP switch settings .
BASIC SPECIFICATIONS
Physical properties:
Ports: 4× 10/100BASE-TX RJ-45, 2× 1000BASE-X SFP
Memory: 4K MAC addresses
Throughput: 4.8 Gbps bus, 3.57 Mpps operational (64B)
Transmission support: JumboFrame 16 kB
Design: DIN rail, wall-mounted
Power supply: redundant, DC 9–48 V or AC 24 V, power consumption up to 3.4 W
Protection: ESD up to 6 kV contact, up to 6 kV air, surge protection up to 6 kV DC
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 135 × 87.8 × 32 mm
Weight: 430g
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g (IEC-60068-2-27)
