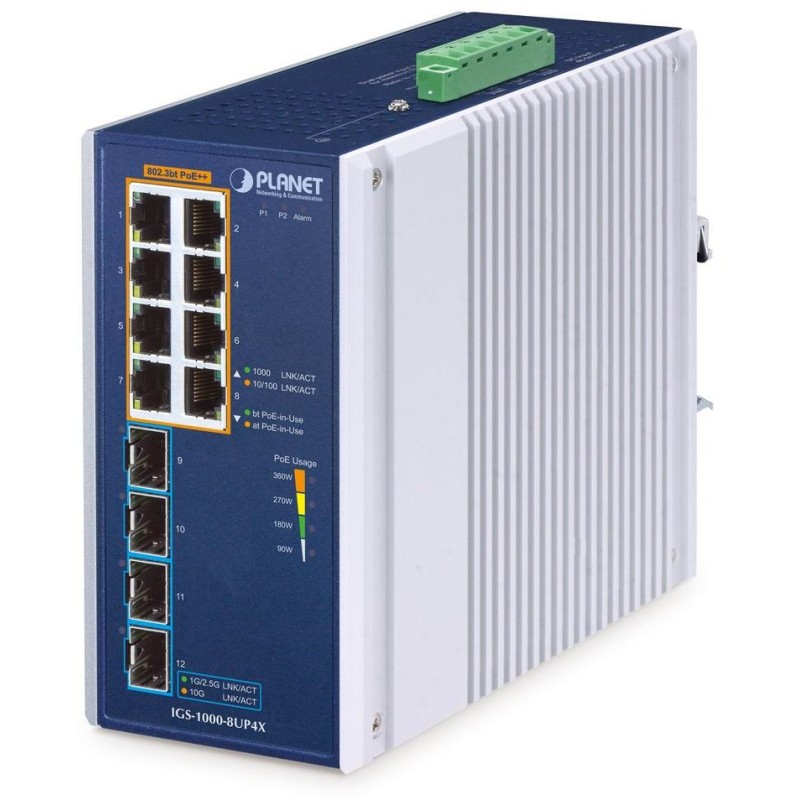

PLANET IGS-1000-8UP4X
Unmanaged industrial L2 PoE++ switch with 8× RJ-45 10/100/1000 Base-T and 4× 10G Base-X SFP+ . Ports 1–8 support PoE++ power (802.3af/at/bt), with a total power of up to 360 W.
Alarm output in case of failure, ESD protection up to 6 kV (8 kV in air), IP30 protection, metal housing, operating temperature -40 to +75 °C , mounting on DIN rail or directly on the wall, dual power supply DC 48–54 V.
Industrial Ethernet switches are designed for demanding operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
IGS series switches are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology even in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
BASIC SPECIFICATIONS
Physical properties:
Ports: 8× 10/100/1000 Base-T RJ-45, 4× 10G Base-X SFP+
Memory: 16k MAC addresses, 12 Mb buffer
Throughput: 96 Gbps bus, operational 71.43 Mpps (64B)
Transmission support: JumboFrame 12 kB
Design: DIN rail, wall-mounted
Power supply: redundant, 2× DC 48–54 V, power consumption up to 8.69 W without PoE, max. 387.2 W with PoE (power supply not included)
Protection: ESD up to 6 kV DC (contact), ESD up to 8 kV (air), surge protection up to 6 kV DC
Operating temperature: -40 to +75 °C, humidity up to 90%
Dimensions: 152 × 135 × 76 mm
Weight: 1352g
PoE function:
Total power output: max. 360 W (two power inputs), 240 W (one power input), 802.3af, 802.3at, 802.3bt
Number of injectors: 8× up to 95 W
Power supply type: End-span, Mid-span, 802.3bt
Advanced features:
protection (of a circuit) against interference between ports
automatic detection of powered device
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g (IEC-60068-2-27)
