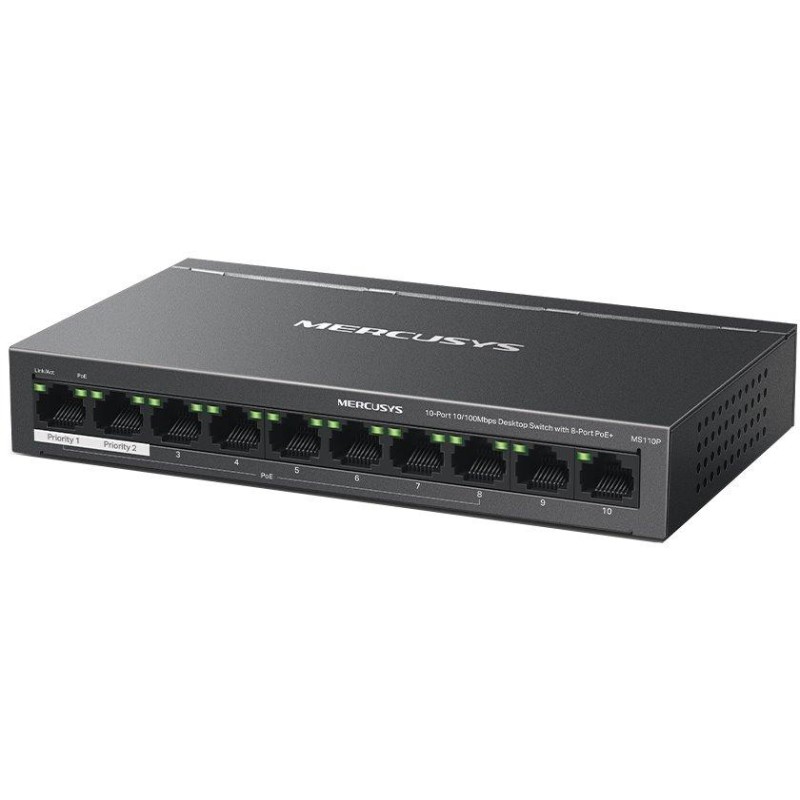

TP-Link Mercusys MS110P Switch 10-Port, 8x 10/100 Mbps PoE+, 2x LAN, 802.3af/at, 65 W

Mercusys MS110P

10-port switch with PoE+ 802.3af/at support in a compact design with Auto-Negotiation and Auto-MDI/MDIX support. Data transfer speed is up to 100 Mbps at Half Duplex and up to 200 Mbps at Full Duplex connection.

•

• Two cables in one: With eight PoE+ ports, it transmits data and power over a single cable.

• High Power PoE+: Supports up to 30W of power per PoE port and up to 65W total across all ports.

• Long range up to 250m: Increases PoE transmission distance up to 250m using Extend mode (port speed will be reduced to 10Mbps).

• Isolation Mode: One-click to isolate traffic for specific ports to ensure stability and security.

• Powered Device Compatibility: Works with IEEE 802.3af/at PD.

• 2× Uplink Ports: MS106LP provides 2× uplink ports when isolation mode is enabled. One for connecting to the Internet and one for connecting to the NVR.

• Durable metal housing: Allows for efficient heat dissipation and long network life.

• Plug and Play: Easy to use, saving time and effort.

• PoE Auto-Recovery: Automatically restarts downed or unresponsive PoE-powered devices.


The package includes a power adapter (53.5 V/1.31 A).

BASIC SPECIFICATIONS

Ports: 10× RJ-45 10/100 Mbps

Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Switch capacity: 2 Gb/s

PoE: yes, 8× PoE+, 802.3af/at, total max. 65 W

Dimensions: 171 × 98 × 27 mm
