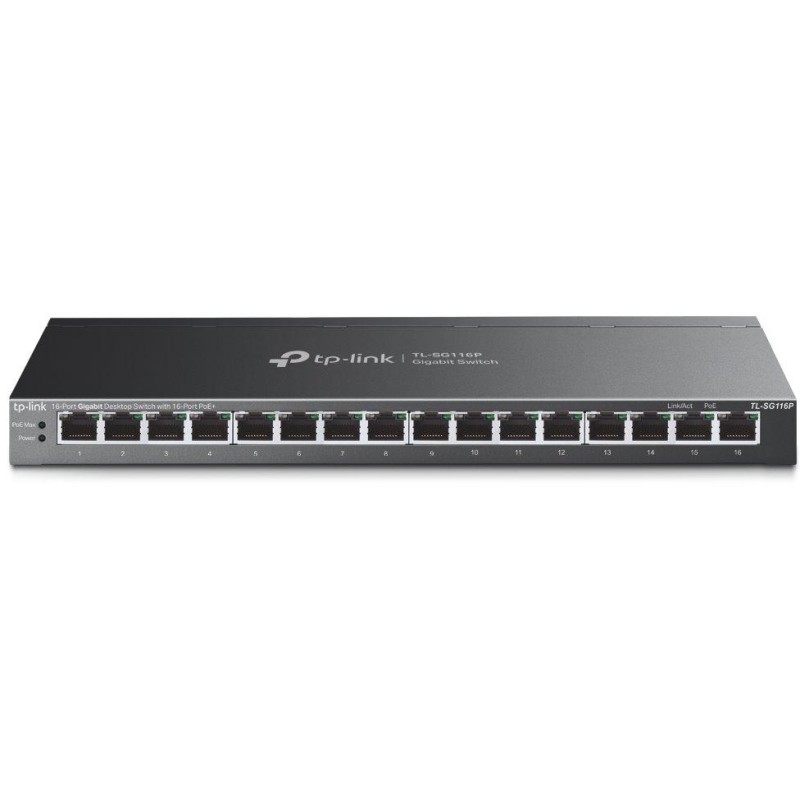

TP-Link TL-SG116P Switch 16x GLAN with POE+, 120W, metal

TP-Link TL-SG116P

The switch offers 16× GbE RJ-45 ports with PoE+ 802.3at/af support and a total load of up to 120 W. The switching capacity reaches up to 32 Gbps and the routing speed reaches up to 23.8 Mpps .

•

• 16 PoE+ Ports for Various Applications: Compliant with 802.3af/at PoE+ standard, supporting up to 30W on each PoE port. Total budget of 120W from all 16 PoE ports provides a wide range of applications, such as surveillance systems for offices, student dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, and other devices.

• Ideal for IP surveillance systems: The PoE power transmission distance reaches up to 250m in Extend mode, perfect for deploying IP cameras in large areas.

• Port prioritization: By prioritizing data flow from ports 1-4, you can easily ensure the quality of operation of sensitive applications such as video and voice devices.

• Enhanced security with port isolation: Isolation mode increases security by easily separating data traffic on ports 1-7 or 8-14, preventing monitoring and security breaches and isolating broadcast congestion.

• PoE Auto-Recovery Function: The switch automatically detects and restarts powered devices such as cameras and access points if they go offline or become unresponsive, ensuring stable device operation without the need for manual monitoring and restarting.

• Intelligent Power Management: When the total power consumption exceeds 120W, intelligent power management will cut off power to the lower priority port, ensuring power to the high priority port and protecting the power supply from overload.

• Durable Metal Housing: The internal components of the TL-SG116P switch are protected by a high-quality metal housing, which guarantees a long service life.


BASIC SPECIFICATIONS

Number of ports: 16× GbE RJ-45

Switch capacity: 32 Gb/s

Routing speed: 23.8 Mp/s

PoE: yes, 802.3at/af, max. 120 W

Power supply: DC 53.5V/2.43A

Dimensions: 286 x 111.7 x 25.4 mm
