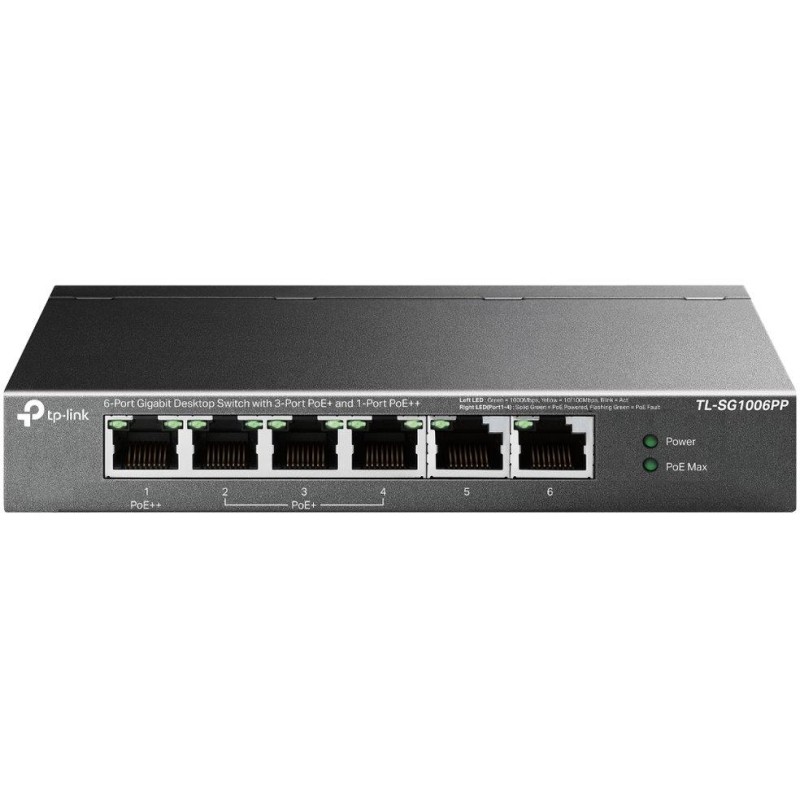

TP-Link TL-SG1006PP
The desktop switch is equipped with 6 Gigabit RJ-45 ports , of which 3 ports have PoE+ (Power over Ethernet) power supply and 1 PoE++ power supply. In this design, electrical power is transmitted together with data over the same cable, which allows you to extend your network to places where there are no electrical connections or sockets, but where you want to use devices such as access points, IP cameras or IP phones, etc.
The switch is easy to install and use, requiring no configuration or special assembly. Its desktop-friendly design and excellent performance make it a great choice for expanding your home or small business network.
1× PoE++ and 3× PoE+ ports for a variety of applications
Port 1 meets the requirements of the 802.3af/at/bt PoE++ standard and provides sufficient power up to 60 W, ports 2-4 meet the requirements of the 802.3af/at PoE+ standard and support power up to 30 W on each PoE+ port.
Ideal for IP surveillance
In Extend Mode, the PoE power transmission distance reaches up to 250 m - ideal for deploying IP cameras in large areas.
PoE Auto Recovery Function
The switch automatically detects and restarts PD devices such as cameras and access points when they turn off or become unresponsive, ensuring stable operation of PoE-connected devices without the need for manual monitoring and restarting.
Intelligent power management
When the total power consumption exceeds 64W, intelligent power management will reduce power to the lower priority port. This ensures power to the higher priority port and protects the device from overload. It also automatically detects and provides the necessary power to PoE devices, while protecting PoE devices and others from damage.
Durable metal casing
The internal components of the TL-SG1006PP are protected by a high-quality metal housing, ensuring a long product life. It has passed a series of rigorous reliability tests, providing switching performance you can rely on.
BASIC SPECIFICATIONS
Ports: 6x RJ-45 10/100/1000 Mbps
PoE: yes, 1x PoE++ 802.3af/at/bt, 3x PoE+ 802.3af/at (total 64 W)
Switch capacity: 12 Gb/s
Routing speed: 8.928 Mp/s
Dimensions: 158 × 101 × 25 mm
