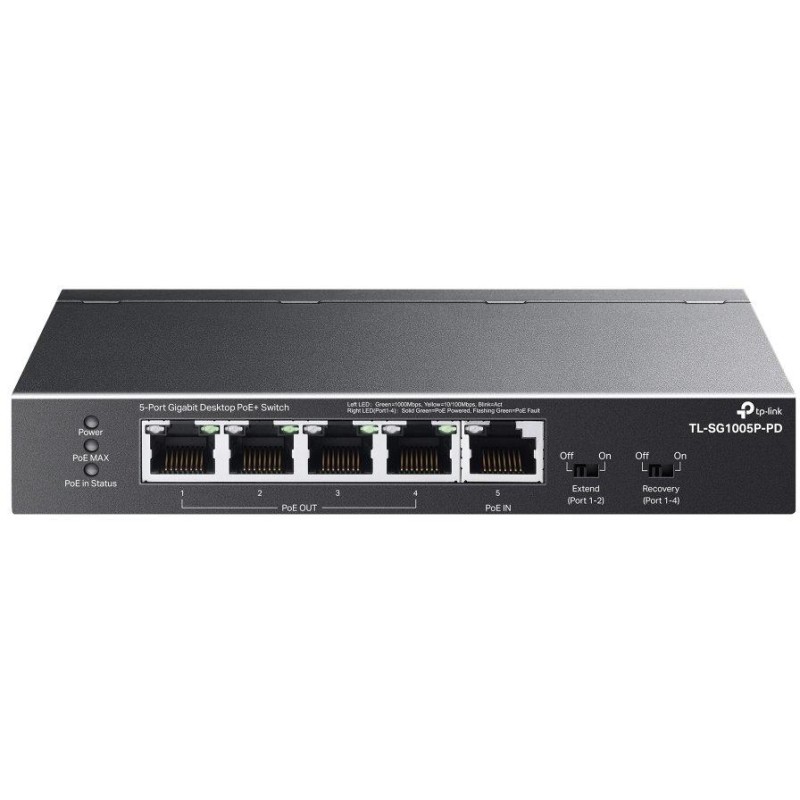

TP-Link TL-SG1005P-PD Switch 1x GLAN with PoE-in, 4x GLAN with PoE+

TP-Link TL-SG1005P-PD

The switch offers 5× GbE RJ-45 ports, one of which is a PoE++ gigabit input port and four PoE+ output ports with a total output of up to 66 W. This allows you to transmit data and power with a single cable. In Extend Mode (port 1–2), it supports data transmission and PoE power supply up to 250 m , making it suitable for deploying camera systems in large areas. The switching capacity reaches up to 10 Gbps and the routing speed is up to 7.44 Mpps . Network traffic control ( QoS ) offers smoother and faster transmission of your data. With the Plug and Play function, it requires no configuration.

•

• Long PoE+ range: Data transmission and PoE power supply over a distance of up to 250 m in Extend Mode, ideal for deploying a camera system in large areas.

• 1× PoE++ input and 4× PoE+ output: Total PoE output up to 66 W (47 W, 21 W, 9 W - depending on input power) compliant with 802.3bt Type 4, 802.3bt Type 3, 802.3at and 802.3af standards.

• Automatic PoE Recovery: Ensures continuous operation of PoE devices by automatically restarting devices that have failed or become unresponsive.

• Metal housing: The metal housing and rugged construction are designed for tabletop or wall mounting, making it ideal for installation in a variety of environments with varying conditions.

• Quiet operation: Advanced fanless design ensures quiet operation, making it ideal for any home or business.

• Power: This product only supports PoE (PD - Powered Device) power supply. It does not support AC or DC power supply.


BASIC SPECIFICATIONS

Number of ports: 5× GbE RJ-45

Switch capacity: 10 Gb/s

Routing speed: 7.44 Mpps

PoE output: 4× 802.3af/at, total 66 W

PoE input: 1× 802.3af/at/bt, max. 90 W

Max. power consumption: 68.59 W

Dimensions: 158 × 101 × 25 mm
