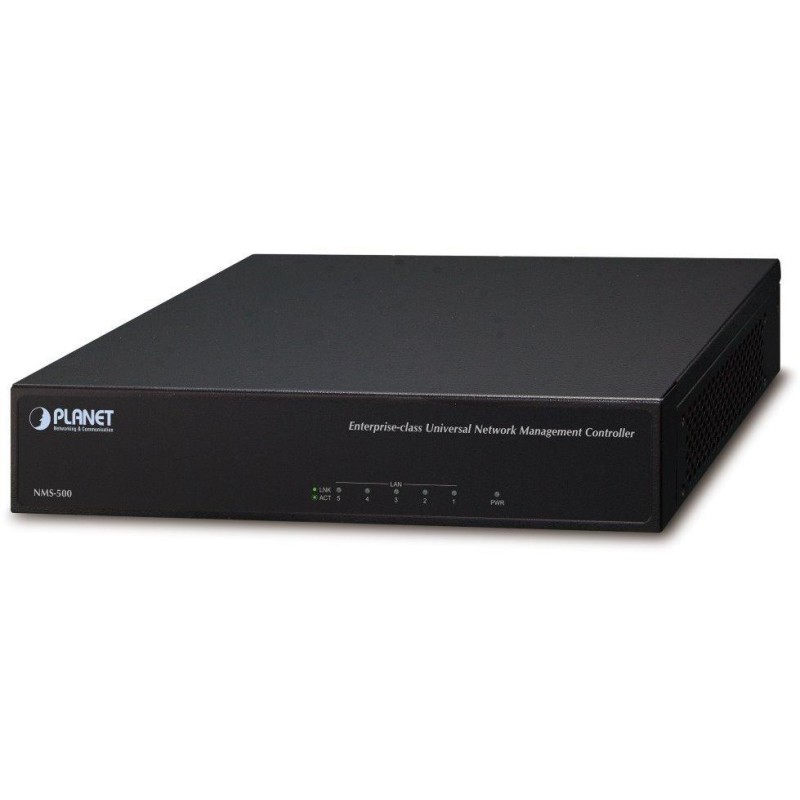

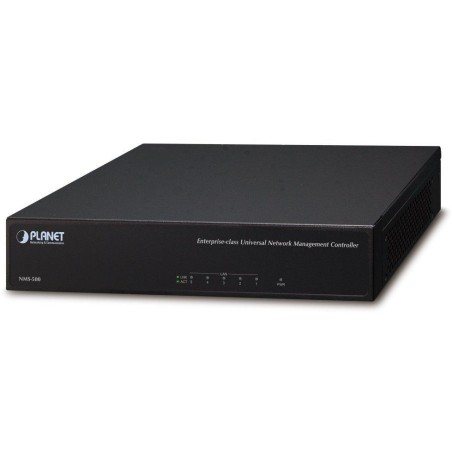

PLANET NMS-500
The controller provides centralized control and management of up to 512 devices (APs, routers, switches, IP cameras, VoIP phones, converters, etc.), allowing service providers and IT managers to manage all devices simultaneously. In addition, it offers a graphical and user-friendly management interface .
It collects all operational statistics of managed devices and displays this data through graphs, maps, and tables.
- Support for SNMP, ONVIF and PLANET Smart Discovery utility protocols.
- centralized real-time system monitoring .
- Visualization of system utilization and node status.
- Increasing network management efficiency.
- Optimize wireless network performance using heatmap ( display of coverage and signal strength ).
- Possibility of control via a web browser (we recommend Chrome).
- Built-in DHCP and RADIUS server, secure SSL access.
- Web GUI management interface, SNMP v1/v2c/v3 management, command line interface (console/telnet).
- Supports PLANET DDNS and Easy DDNS.
Network management
- Number of managed devices: 512
- Number of RADIUS clients: 512
- Number of user accounts: 10000
- Auto Discovery support: yes, supports PLANET devices
- Dashboard: a comprehensive overview of the system
- Device List: allows you to create and maintain device profiles in the system
- Topology overview: yes, visual view of the topology of connected devices
- Status monitoring: yes, current (real-time) overview of offline/online devices
- Event and system message reporting: yes, logging and syslog server support
- Alarm: allows selection/setting of alarm trigger events
- SMTP alarm: notification via SMTP server (email)
- SSID/RF Profile: Create and maintain multiple wireless profiles
- Cluster management: grouping APs for mass provisioning and batch upgrades
- Bulk AP Provisioning: supports bulk provisioning using user-defined profiles
- Bulk AP Firmware Upgrade: support bulk firmware upgrade
- Heat Map: display of signal coverage of a given area
- Graphical statistics: clear display of current or historical data flow (wireless traffic flow)
- Backup/Restore: provides system and profile backup/restoration
- SSID to VLAN mapping: yes, configure SSID to VLAN mapping on supported APs
- RADIUS authentication: yes, client authentication in a large corporate network
- User account management: yes, supports on-demand account creation according to user-defined rules
BASIC SPECIFICATIONS
Management and interface
Interfaces: 5 x RJ-45 10/100/1000 Base-T, 1 x RJ-45 (RS-232) serial console port, 2 x USB 3.0 (only one active at a time)
Management: console, Telnet, SSL, web browser (Chrome recommended), SNMP v1/v2c/v3
Physical properties
Processor: Intel Celeron N3350
RAM: 2 GB, DDR3, 1866 MHz
HDD capacity: 8GB eMMC
Operating temperature: 0 to +40 °C
Power supply: external adapter 12 V (max. 5 A), power 60 W
Dimensions: 232 x 153 x 44 mm
Design: desktop
Weight: 1.15 kg
