Ubiquiti UISP LTU PRO - 5GHz PtP/PtMP client, LTU, 4096QAM, up to 900Mbps, antenna 24dBi

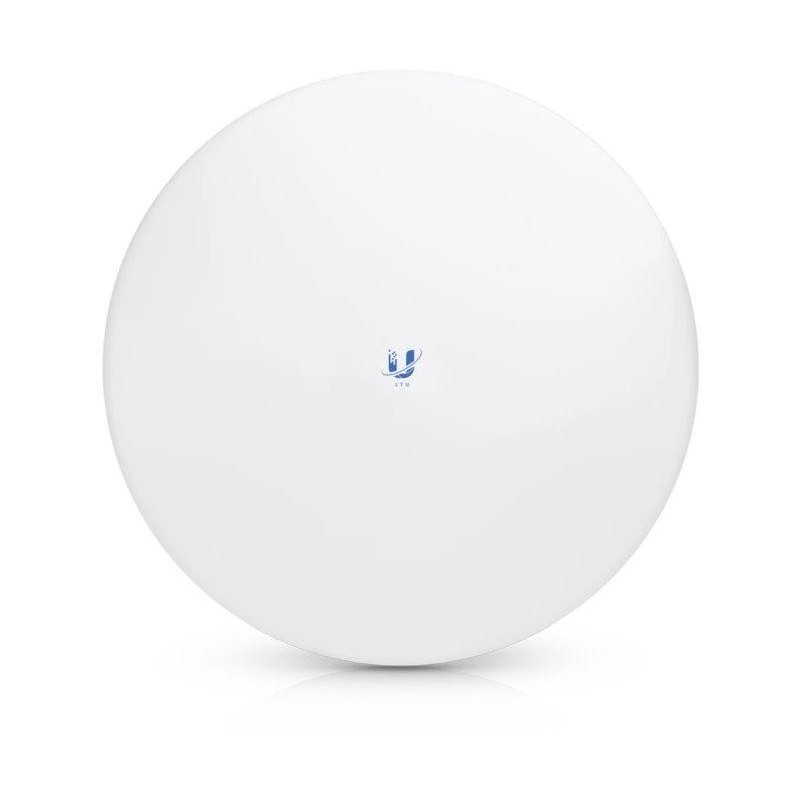

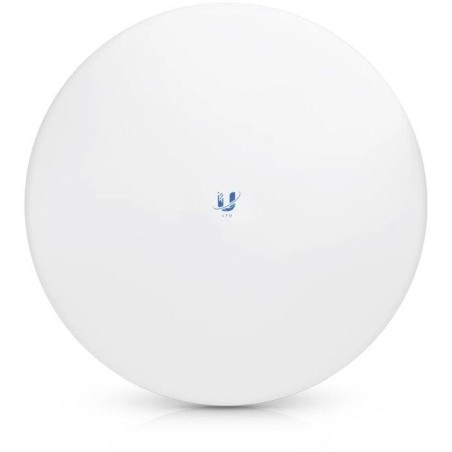

Ubiquiti UISP LTU Pro

The LTU Pro is a high-performance 5 GHz outdoor unit designed for PtP/PtMP (Point-to-Point/Point-to-multipoint) connections as a client unit for the Rocket LTU. The range is 25+ km and the antenna gain is 24 dBi .

Proprietary LTU technology is not limited by Wi-Fi 802.11 standards. It is a proprietary Ubiquiti chipset, thanks to which the LTU Pro unit achieves throughput of 900+ Mbps and supports 4096 QAM modulation.

Function:

•

• PtMP CPE

• 4096 QAM modulation

• Channel width 10/20/30/40/50/100 MHz

• Central configuration management by the AP

• RX and TX frequency division (for non-DFS channels)

• Automatic power adjustment

• Bridge and router mode support


The LTU Pro can use different frequencies for TX and RX, which helps to avoid ambient interference.

The package includes a 24 V (0.5 A) Gbit power PoE injector .

BASIC SPECIFICATIONS

Frequency: 5GHz

Throughput: 900+ Mbps

Antenna diameter: 316.5 mm

Gain: 24 dBi

Range: 25 km

Important notice:

The system is constantly being improved, so we recommend always using the current version, which you can download from the Ubiquiti website in the Downloads section. At the same time, it is necessary to operate the device in accordance with the General Authorization for the 5 GHz band, use the DFS function and avoid using frequencies used by meteorological radars, i.e. 5630 and 5645 MHz.
