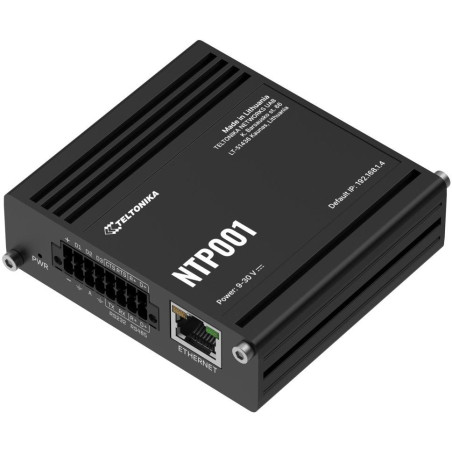

Teltonika NTP001 industrial NTP server, time synchronization, RS232/RS485,

Teltonika NTP001 Compact and durable stratum-1 NTP server, which is used for accurate time synchronization in networks without the need for an Internet connection. Thanks to the integrated GNSS receiver (support for GPS, GLONASS, Galileo, BeiDou, QZSS), it obtains accurate time directly from satellites and provides it via the NTP protocol to the connected network. Mounting possible on a DIN rail, wall or flat surface (brackets not included). Key features: Accurate time synchronization - ± 1 ms deviation via Ethernet. Integrated GNSS receiver - support for GPS, GLONASS, Galileo, BeiDou and QZSS. Communication interface: 1× RJ-45 (10/100 Mbps), RS-232, RS-485, 3× configurable input/output. Supported protocols: NTPv4, Modbus TCP/RTU, MQTT, SNMP, HTTP/HTTPS, SSH, SSL/TLS. RutOS operating system (based on OpenWRT). Power supply 9–30 V DC. Robust aluminum housing with DIN rail mounting and IP30 protection. Operating temperature range: -40 °C to 75 °C. Software: Operating system: RutOS (Linux operating system based on OpenWrt) Network functions: network protocols, connection monitoring, network topology, DDNS Security: authentication, WEB filter, access control, 802.1x Monitoring and management: WEB UI, SSH, SNMP, JSON-RPC, MODBUS NTP (Network Time Protocol): Daytime Protocol, Date over Serial, NTP, Protocol, NTP accuracy, NTP performance, synchronization accuracy Services: Modbus, Modbus MQTT Gateway Position tracking: GNSS, acquisition sensitivity, accuracy, time sources, Startup For more detailed information, see the enclosed manual, the documents tab or the wiki.teltonika-networks.com/view/NTP001 page. Processor: MediaTek, 580 MHz, MIPS 24KEc Memory: 128 MB RAM + 16 MB Flash Interface: 1× RJ-45 (10/100 Mbps), 1× SMA (GNSS), 1× 16pin terminal (3× configurable input/output, RS-232, RS-485, 1× analog input) PoE support: no Power supply: DC 9–30 V (16pin connector), consumption up to 3.5 W Dimensions: 83 × 82.6 × 25 mm Weight: 180 g
