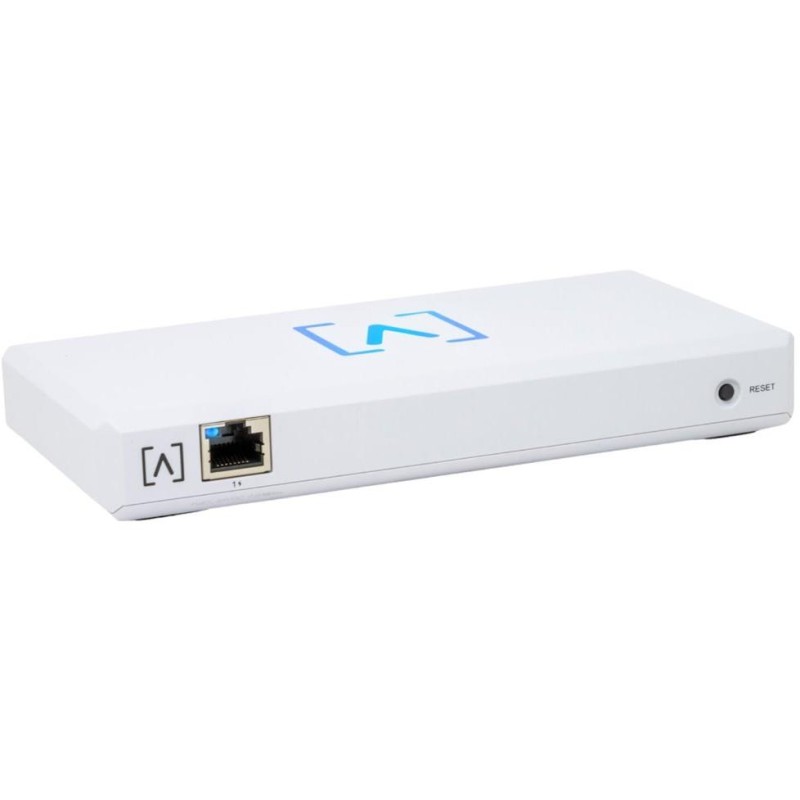

ALTA CONTROL - Local network controller for ALTA products

Alta Labs Control

Local controller designed for monitoring and managing up to 1000 Alta Labs units – Wi-Fi access points, switches and routers . The device is powered by a Qualcomm quad-core processor with a clock speed of 2.2 GHz . The unit can be powered both via a USB-C adapter and via PoE 802.3af (power supply not included). The advantage is the ability to connect USB-C and PoE power simultaneously , when USB-C power is used as the default and in case of its failure, PoE power takes over. Bluetooth technology is available for initial setup using a mobile application. Of course, there is also a clear web interface .

The package includes a wall bracket with screws and plugs. The power supply is not included.

•

• Quad-core processor (2.2 GHz)

• Backup and restore features

• Can manage up to 1000 Alta Labs devices

• AltaPass technology with multiple passwords

• Mobile application

• Advanced Filtering - DPI Engine

• Internet access plan

• Hotspot function

• Changes and scanning on the fly

• SSID broadcast flexibility

• Bluetooth settings

• Wall/desk mounting


BASIC SPECIFICATIONS

Compatibility: Alta Labs APs, switches and routers

Max. number of devices: 1000

Interface: Bluetooth, 1× GbE RJ-45, 1× USB-C (power only)

Power supply: USB-C (DC 5 V) or PoE 802.3af (DC 42.4-57 V), max. 8 W consumption

Operating temperature: -5 °C to +50 °C

Dimensions: 180 × 91 × 25.7mm

Weight: 380g

Alta Networks applications:

Android app

iOS app
