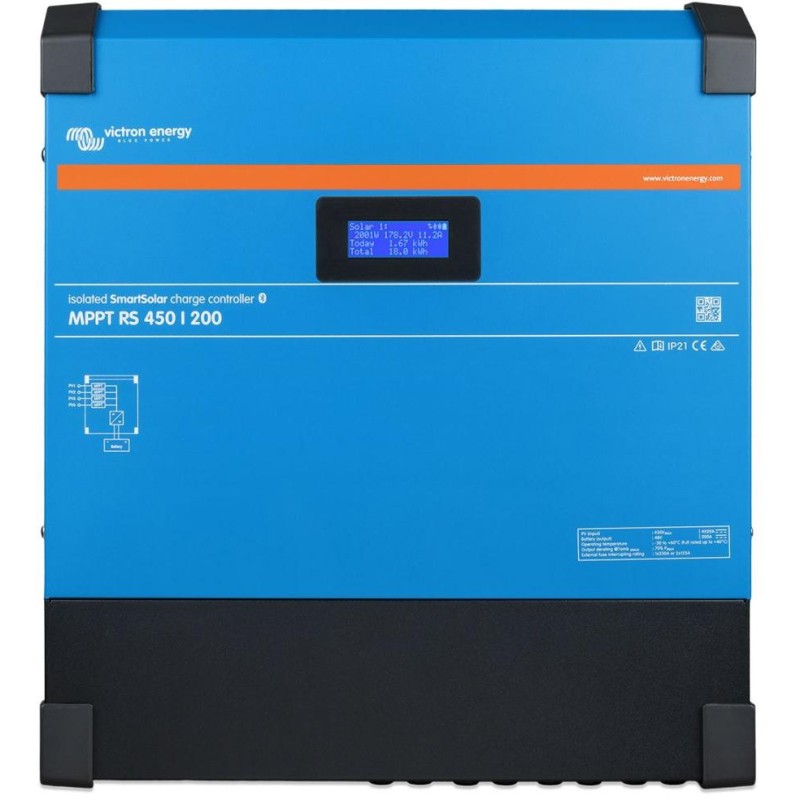

Victron SmartSolar RS 450/200-MC4 VE.Can MPPT solar controller

Victron SmartSolar RS 450/200-MC4 VE.Can MPPT Robust and fast MPPT controller with VE.Can for demanding conditions with panel voltage up to 450 V, charging current 200 A. For 48 V batteries, PV max. 11,520 Wp. Built-in Bluetooth and display. SmartSolar MPPT RS 450 V (200 A) solar controllers are the solution for systems with a larger number of series-connected PV panels charging 48 V batteries. This product is ideal for large island systems, but also for systems connected to the distribution grid. Note: This is the version with MC-4 connectors. Four independent PV inputs for MPPT tracking Thanks to the four independent inputs, you can connect, for example, four differently oriented or different sized PV arrays. VE.Direct port For connection to the GX device, system monitoring, data transfer to the VRM portal and remote firmware updates. VE.Can Solution for multiple solar controllers in one system. With the VE.Can function, up to 25 units in one PV system can be synchronized. Ultra-fast Maximum Power Point Tracking (MPPT) Victron Energy MPPT solar controllers are among the absolute world leaders in this field and offer ultra-fast MPPT tracking. Built-in Bluetooth Smart You can monitor and configure the SmartSolar MPPT controller via a smartphone or tablet. You can monitor current statuses and historical data and make parameter settings using the VictronConnect mobile application. If you want to do the above using a PC, then you have the option of using the VE.direct to USB cable to connect the controller and the PC. You just install the Victron Connect program on your computer. Built-in display The display is located on the front of the controller and allows you to visualize all operating states. Isolated PV connection for greater safety Full galvanic isolation between the PV and battery connections provides additional overall system safety. PV insulation resistance monitoring at higher voltages The MPPT RS continuously monitors the PV panels and can detect any faults that reduce the panel insulation to dangerous levels. I/O connections Programmable relay, temperature sensor, auxiliary, digital input and voltage sensor. Remote input can receive signals from Victron BMS. Recommended configuration For batteries with a voltage of 48 V. Maximum DC charging power of the system 11.5 kW. If these values are exceeded, the controller will not be damaged, but will only automatically reduce the incoming power from the panels to acceptable values. The maximum input short-circuit current to the controller from the PV panels must not exceed 20 A per input, otherwise permanent damage may occur. The maximum input voltage of the PV panels, referred to as Voc (open-circuit voltage), must not exceed 450 Voc (approx. 360 Vmpp), otherwise permanent damage may occur - it must be taken into account that Voc increases with decreasing temperature. The MPPT operating voltage range is 80–450 V, the trigger voltage is 120 V. View a detailed online manual with a description of all Smart functions here. Detailed technical information can be found in the enclosed manual and data sheet. Warning: Victron Energy MPPT controllers are not allowed to be used in combination with photovoltaic panel optimizers. When used, damage to the MPPT controllers and optimizers may occur and this damage may not be recognized as a valid complaint. BASIC SPECIFICATIONS Battery voltage: 48 V Nominal charging current: 200 A Maximum charging power: 11.5 kW at 57.6 V Charging voltage (absorption): 57.6 V (adjustable) Charging voltage (float): 55.2 V (adjustable) MPPT operating voltage range: 80–450 V Efficiency (max.): 96 % Protection: IP21 Weight: 13.7 kg Dimensions: 487 × 434 × 146 mm VictronConnect application: Applicatione VictronConnect for Android mobile devices VictronConnect app for iOS mobile devices VictronConnect app for Mac devices The app is also available for download on the Victron Energy website (Mac/Windows/Linux/iOS/Android): https://www.victronenergy.com/support-and-downloads/software#victronconnect-app
