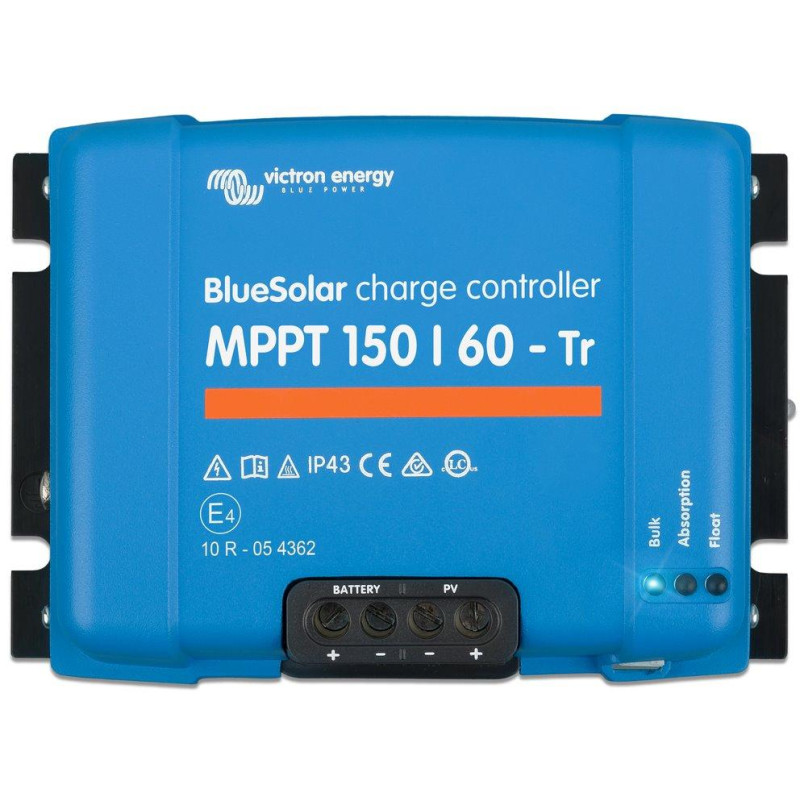

Victron BlueSolar 150/60-Tr MPPT
Robust and fast MPPT controller for demanding conditions with panel voltage up to 150 V , maximum charging current 60 A. Battery 12/24/48 V , PV max. 860/1720/3440 Wp .
The BlueSolar solar controller processes energy from solar panels and stores it in batteries , maximizing solar gains, intelligently maintaining battery health and extending battery life. The BlueSolar solar controller can recharge even a deeply discharged battery, as it can operate with a battery voltage down to 0 volts, provided the cells are not permanently sulfated or otherwise damaged.
Ultra-fast MPPT technology
The controller constantly monitors the voltage and current from the solar panels and, thanks to MPPT technology, extracts maximum energy from them, which is especially beneficial in variable sunlight intensity. MPPT technology ensures up to 30% higher energy gain compared to PWM solar controllers and up to 10% higher gain compared to slower MPPT controllers.
Remote monitoring and control
If your installation is connected to the internet using GX devices, the VRM portal provides access to your devices anytime, anywhere.
VE.Direct connector
VE.Direct is used to connect to GX devices, PCs or other devices.
Excellent conversion efficiency
The regulator has excellent conversion efficiency. The maximum efficiency exceeds 98%. One of the advantages of the high efficiency is that the regulator does not have a cooling fan and the maximum output current is guaranteed up to an ambient temperature of 40 °C (104 °F).
Other features:
- natural passive cooling
- automatic battery voltage detection
- protection against overheating and power reduction at high temperature
- flexible charging algorithm
- Internal temperature sensor compensates for absorption temperature and float charge voltage
- fully discharged battery recovery function
- starts charging even if the battery is completely discharged
- reconnects to a fully discharged Li-ion battery with integrated disconnect function
Notice:
Victron Energy MPPT controllers are not permitted to be used in combination with photovoltaic panel optimizers. When used, damage to both MPPT controllers and optimizers may occur and this damage may not be recognized as a valid complaint.
BASIC SPECIFICATIONS
Battery voltage: 12/24/48 V autodetection (36 V manual - software)
Maximum battery current: 60 A
Maximum PV power, 12 V: 860 W
Maximum PV power, 24 V: 1720 W
Maximum PV power, 48 V: 3440 W
Maximum PV voltage (open circuit):
150 V absolute maximum under coldest conditions
145 V inrush and operating maximum
Max. short-circuit current: 50 A
Efficiency (max.): 98%
Weight: 3 kg
Dimensions: 250 × 185 × 95 mm
VictronConnect app:
VictronConnect app for Android mobile devices
com/us/app/victronconnect/id943840744" target="_blank" rel="noreferrer noopener">
VictronConnect app for iOS mobile devices
VictronConnect app for Mac devices
The application is also available for download on the Victron Energy manufacturer's website (Mac/Windows/Linux/iOS/Android):
https://www.victronenergy.com/support-and-downloads/software#victronconnect-app
Configurator (version 2.6):
https://www.victronenergy.com/upload/software/VE-MPPT-Calc-2_6.xlsx
You can check the correct selection of your MPPT controller according to the parameters of the PV array in this configurator (v2.4) or in a newer version, which can be found at www.victronenergy.com/support-and-downloads/software .
