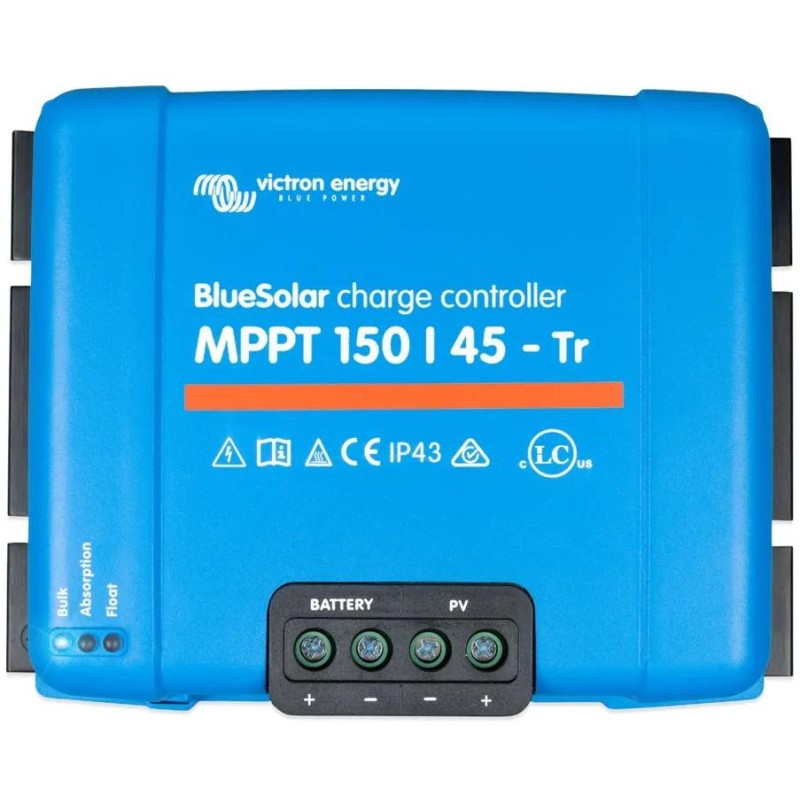

Victron BlueSolar 150/45 MPPT
Robust and fast MPPT controller for demanding conditions with panel voltage up to 150 V , maximum charging current 45 A. Battery 12/24/48 V , PV max. 650/1300/2600 Wp .
The BlueSolar solar controller processes energy from solar panels and stores it in batteries, maximizing solar gains, intelligently maintaining battery health and extending battery life. The BlueSolar solar controller can recharge even a deeply discharged battery, as it can operate with a battery voltage down to 0 volts, provided the cells are not permanently sulfated or otherwise damaged.
Ultra-fast MPPT technology
The controller continuously monitors the voltage and current from the solar panels and uses MPPT technology to extract the maximum energy from them. This capability is especially advantageous when the intensity of sunlight varies. MPPT technology allows you to obtain up to 30% more energy than PWM solar controllers and up to 10% more than slower MPPT controller variants.
Remote monitoring and control
If your installation is connected to the internet using GX devices, the VRM portal provides access to your devices anytime, anywhere.
VE.Direct connector
VE.Direct is used to connect to GX devices, PCs or other devices.
Excellent conversion efficiency
The regulator has excellent conversion efficiency. The maximum efficiency exceeds 98% . One of the advantages of high efficiency is that the regulator does not have a cooling fan and the maximum output current is guaranteed up to an ambient temperature of 40 °C (104 °F) .
- Natural passive cooling
- Automatic battery voltage detection
- Overheating protection and high temperature derating
- Flexible charging algorithm
- Internal temperature sensor compensates for absorption temperature and float charge voltage
- Fully discharged battery recovery function
- Starts charging even if the battery is completely discharged
- Reconnects to a fully discharged Li-ion battery with integrated disconnect function
Warning: Victron Energy MPPT controllers are not permitted to be used in combination with photovoltaic panel optimizers. When used, damage to both MPPT controllers and optimizers may occur and this damage may not be recognized as a valid complaint.
BASIC SPECIFICATIONS
Battery voltage: 12/24/48 V autodetection (36 V manual - software)
Rated charging current: 45 A
Rated photovoltaic power, 12 V: 650 W
Rated photovoltaic power, 24 V: 1300 W
Nominal photovoltaic power, 36 V: 1950 W
Rated photovoltaic power, 48 V: 2600 W
Maximum PV voltage (open circuit):
150 V absolute maximum under coldest conditions
145 V inrush and operating maximum
Max. short-circuit current: 50 A
Efficiency (max.): 98%
Weight: 1.25 kg
Dimensions: 186 × 130 × 70 mm
VictronConnect app:
VictronConnect app for mAndroid grain device
VictronConnect app for iOS mobile devices
VictronConnect app for Mac devices
The application is also available for download on the Victron Energy manufacturer's website (Mac/Windows/Linux/iOS/Android):
https://www.victronenergy.com/support-and-downloads/software#victronconnect-app
Configurator (version 2.6):
https://www.victronenergy.com/upload/software/VE-MPPT-Calc-2_6.xlsx
You can check the correct selection of your MPPT controller according to the parameters of the PV array in this configurator (v2.4) or in a newer version, which can be found at www.victronenergy.com/support-and-downloads/software .
Detailed online manual with a description of all functions:
English version
Czech version (translate.google translation)
