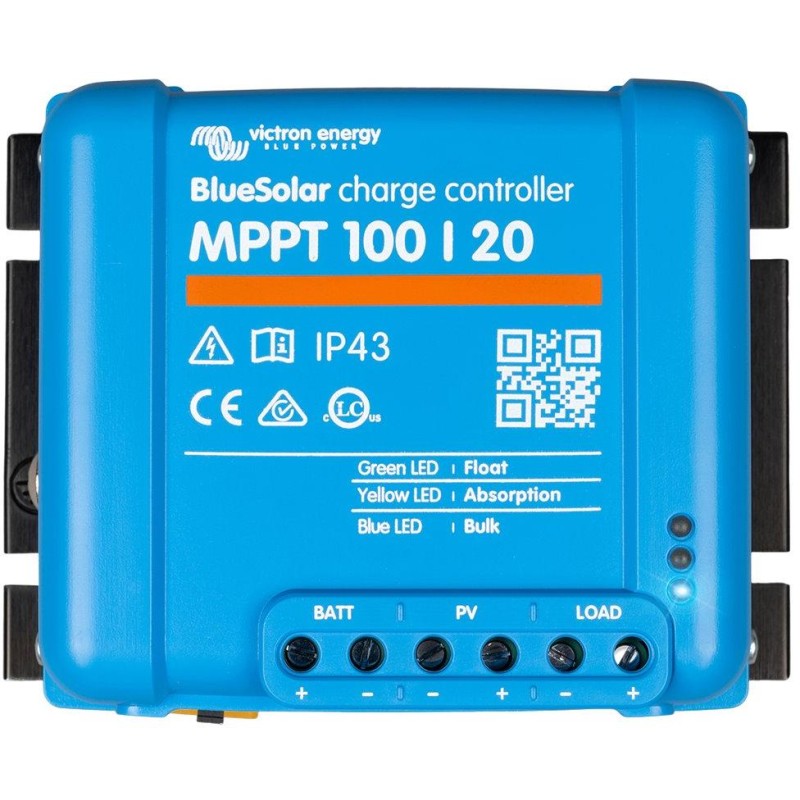

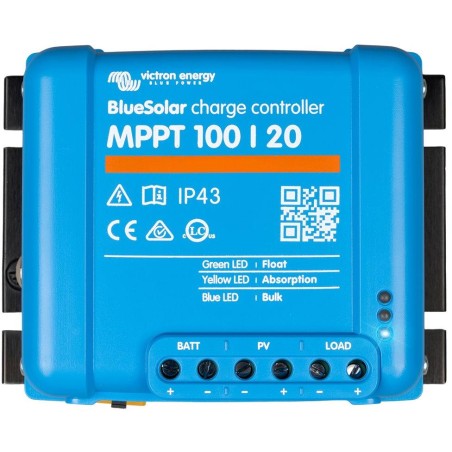

Victron BlueSolar 100/20 MPPT
Robust and fast MPPT controller for demanding conditions with panel voltage up to 100 V , maximum charging current 20 A. Battery 12/24/48 V , PV max. 290/580/1160 Wp .
The BlueSolar solar controller processes energy from solar panels and stores it in batteries , maximizing solar gains, intelligently maintaining battery health and extending battery life. The BlueSolar solar controller can recharge even a deeply discharged battery, as it can operate with a battery voltage down to 0 volts, provided the cells are not permanently sulfated or otherwise damaged.
Ultra-fast MPPT technology
The controller constantly monitors the voltage and current from the solar panels and, thanks to MPPT technology, extracts the maximum energy from them , which is especially advantageous in variable sunlight intensity. MPPT technology ensures up to 30% higher energy gain compared to PWM solar controllers and up to 10% higher gain compared to slower MPPT controllers.
Remote monitoring and control
If your installation is connected to the internet using GX devices, the VRM portal provides access to your devices anytime, anywhere.
Load output
The intelligent Load output function prevents batteries from discharging below threshold values. You can configure the voltage at which BlueSolar disconnects the load, preventing excessive battery discharge. The BatteryLife function keeps the battery in good condition and extends its lifespan.
VE.Direct connector
VE.Direct is used to connect to GX devices, PCs or other devices.
- Natural passive cooling
- Automatic battery voltage detection
- Overheating protection and high temperature derating
- Flexible charging algorithm
- Day/night timing and dimming option
- Internal temperature sensor compensates for absorption temperature and float charge voltage
- Smart Battery Sense or BMV-712 Smart Battery Monitor can be used to read battery voltage and temperature from one or more BlueSolar controllers
- Fully discharged battery recovery function
- Starts charging even if the battery is completely discharged
- Reconnects to a fully discharged Li-ion battery with integrated disconnect function
Warning: Victron Energy MPPT controllers are not permitted to be used in combination with photovoltaic panel optimizers. Use may cause damage to both MPPT controllers and optimizers and this damage may not be recognized as a valid complaint.
BASIC SPECIFICATIONS
Battery voltage: 12/24/48 V (auto-detection)
Charging current: 20 A
Rated photovoltaic power, 12 V: 290 W
Nominal photovoltaic power, 24 V: 580 W
Nominal photovoltaic power, 48 V: 1160 W
Maximum PV open circuit voltage: 100 V
Max. short-circuit current: 20 A
Efficiency (max.): 98%
Weight: 0.65 kg
Dimensions: 131 × 100 × 60 mm
VictronConnect app:
Vi applicationctronConnect for Android mobile devices
VictronConnect app for iOS mobile devices
VictronConnect app for Mac devices
The application is also available for download on the Victron Energy manufacturer's website (Mac/Windows/Linux/iOS/Android):
https://www.victronenergy.com/support-and-downloads/software#victronconnect-app
Configurator (version 2.6):
https://www.victronenergy.com/upload/software/VE-MPPT-Calc-2_6.xlsx
You can check the correct selection of your MPPT controller according to the parameters of the PV array in this configurator (v2.4) or in a newer version, which can be found at www.victronenergy.com/support-and-downloads/software .
Detailed online manual with a description of all functions:
English version
Czech version (translate.google translation)
