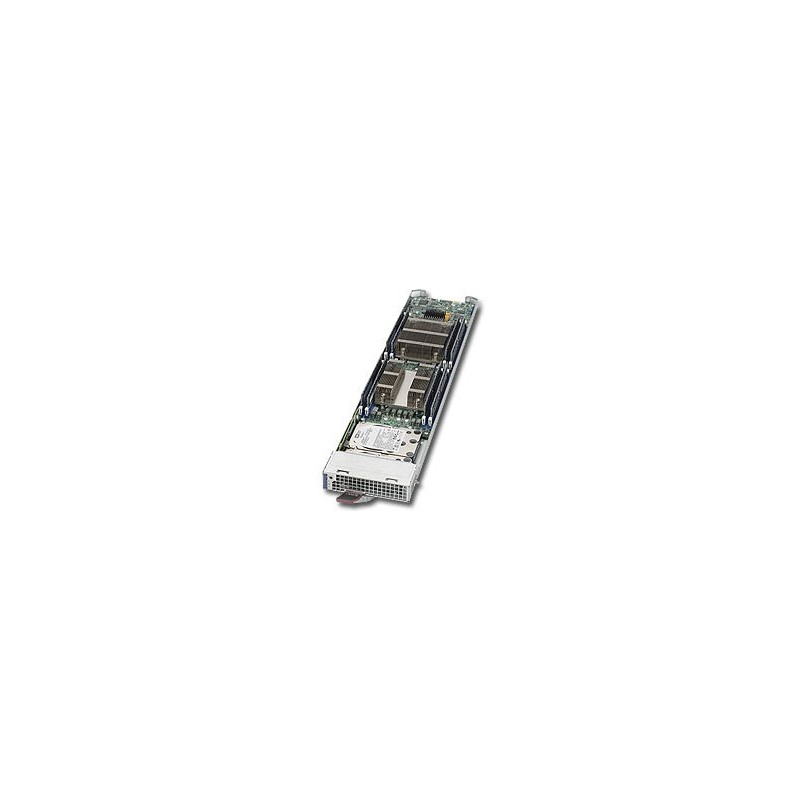

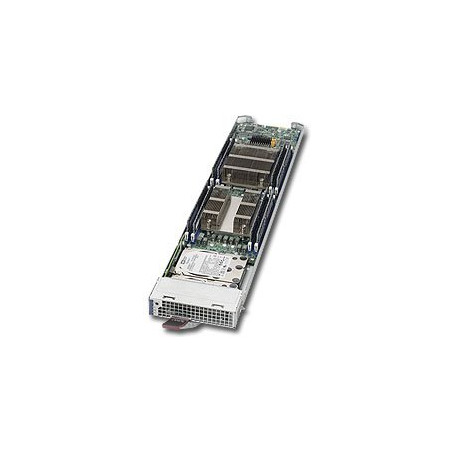

SUPERMICRO MicroBlade 2x LGA 2011-3, 8x DIMM, 2x 2,5" bay, 2x 10Gb

Product SKUs

MicroBlade MBI-6128R-T2X




Motherboard

B1DRI



Processor/Cache

CPU Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 120W TDP)
105W TDP CPU or greater required 2000W PSU
Dual Socket R3 (LGA 2011)

Cores / Cache Up to 18 Cores / Up to 45MB Cache

System Bus QPI up to 9.6 GT/s

Note † BIOS version 2.0 or above is required


System Memory

Memory Capacity 8x 288-pin DDR4 DIMM slots
Up to 256GB VLP ECC RDIMM

Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes VLP RDIMM: 32GB, 16GB, 8GB, 4GB

Memory Voltage 1.2 V

Error Detection Corrects single-bit errors



On-Board Devices

Chipset Intel® C612 Express chipset

SATA SATA3 (6Gbps); RAID 0, 1



Input / Output

DOM 1x SuperDOM (Disk on Module) port

LAN 2x 10GbE ports (via AOC-XEH-I2M)



System BIOS

BIOS Type 128Mb SPI Flash EEPROM with AMI® BIOS

BIOS Features Plug and Play (PnP)
DMI 2.3
ACPI 5.0
USB Keyboard support
SMBIOS 2.7.1
UEFI







Dimensions

Height 1.2" (30.48mm)

Width 4.94" (125.48mm)

Depth 23.2" (589.28mm)

Weight Gross Weight: 5.7 lbs (2.59 kg)
Net Weight: 3.4 lbs (1.54 kg)

Available Colors Silver Grey



Front Panel

LEDs Power LED
UID / KVM LED
Network Activity LED
Fault LED



Drive Bays

Internal 2x 2.5" 6Gb/s SATA3 HDD/SSD and 1x SATA DOM per node



Operating Environment / Compliance
Environmental Spec. Operating Temperature: 10°to 35°C (50°to 95°F)
Non-operating Temperature: -40°to 70°C (-40°to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5 to 95% (non-condensing)



Electromagnetic Compatibility (EMC)
United States / Canada FCC- Emissions (US) Verification

Europe EN55022 - Emissions
EN55024 - Immunity
EN61000-3-2 - Harmonics
EN61000-3-3 - Voltage Flicker
CE - EMC Directive 89/336/EEC



Safety Compliance
United States / Canada UL60950-1 - CSA/CUL 60950-1

Europe EN60950-1, CE - Low Voltage Directive 73/23/EEE

Germany TUV
