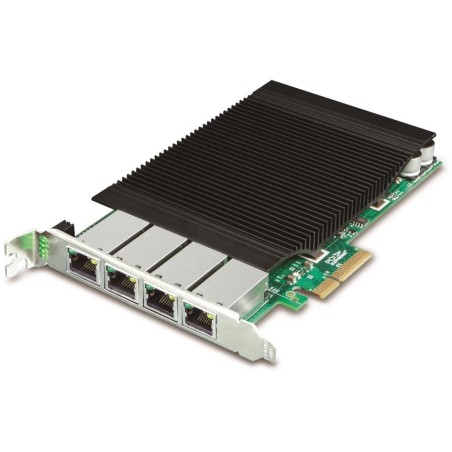

Planet ENW-9740P PCI-E 4x network card, 4x 1Gb RJ-45, 4x PoE+ 802.3at 30W, -10 to +60c

PLANET ENW-9740P

4-port 10/100/1000T 802.3at PoE+ PCI Express server adapter with maximum PoE power up to 120W over Ethernet cables. Compliant with PCI-E standard, ENW-9740P can be installed on any IPC or server motherboard with PCI-E connector to enable IPC or server to communicate with other Ethernet devices and supply power to PD devices. Each port can deliver 30W power and 1000Mbps bandwidth over a network cable up to 100m. 30W PoE+ can now power not only PTZ (pan, tilt, and zoom) cameras for surveillance applications, but also 802.11ac APs for ultra-high-speed wireless applications.

BASIC SPECIFICATIONS

Features:

•

• 4x 10/100/1000T, RJ-45, IEEE 802.3at, PoE+

• flow control support (IEEE802.3x)

• support for Virtual LAN (VLAN) tag detection and processing (802.1Q)


Interface: PCI-E v2.1 x4

Speed: 1GbE

Ports: 4 x RJ-45

PoE support: yes, 30W/port; total power 60W when bus powered, 120W when additional Molex

Own power consumption: < 5W

Working temperature: -10°C to 60°C

Dimensions: 169 x 121 x 18 mm

Supported environments:

Windows Server 2008 R2 64-bit

Windows Server 2012 64-bit

Windows Server 2016 64-bit

Windows 7 32/64bits

Windows 8 32/64bits

Windows 10 32/64bits

Linux 2.6.x, Linux 4.x

VMware 6.0
