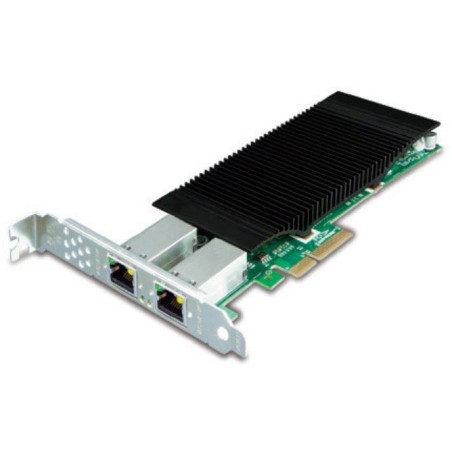

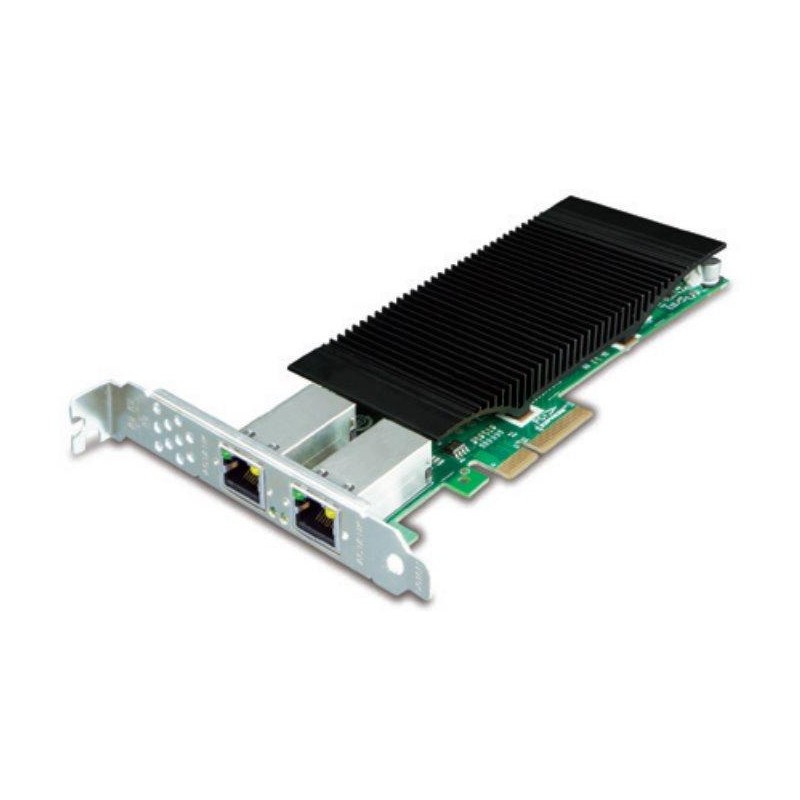

PLANET ENW-9720P
2-port 10/100/1000T 802.3at PoE+ PCI Express server adapter with maximum PoE power up to 60W over Ethernet cables. Compliant with PCI-E standard, the card can be installed on any IPC or server motherboard with PCI-E connector to enable the IPC or server to communicate with other Ethernet devices and supply power to PD devices. Each port can deliver 30W of power and 1000Mbps of bandwidth over a network cable up to 100m. 30W PoE+ can now power not only PTZ (pan, tilt, and zoom) cameras for surveillance applications, but also 802.11ac APs for ultra-high-speed wireless applications.
The ENW-9720P supports most popular and latest operating systems, including Microsoft Windows Server, Linux, and VMware, allowing for easy network integration. No modification to the operating system is required for integration.
BASIC SPECIFICATIONS
Features:
- 2x 10/100/1000T, RJ-45, IEEE 802.3at, PoE+
- flow control support (IEEE802.3x)
- support for Virtual LAN (VLAN) tag detection and processing (802.1Q)
- automatic detection of powered device
- PCI Express 12V power supply
Interface: PCI-E v2.0 x4
Speed: 1GbE
Ports: 2 x RJ-45
PoE support: yes, 30W/port
Power consumption: < 5 W
Working temperature: -10°C to 60°C
Dimensions: 169 x 121 x 18 mm
Weight: 161g
Supported environments:
Windows Server 2008 R2 64-bit
Windows Server 2012 64-bit
Windows Server 2016 64-bit
Windows 7 32/64bits
Windows 8 32/64bits
Windows 10 32/64bits
Linux 2.6.x, Linux 4.x
VMware 6.0
