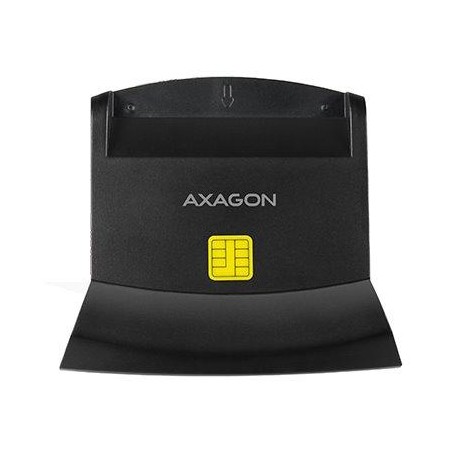

AXAGON CRE-SM2
The stand-alone desktop reader supports all common formats of Smart cards, chip cards and other contact cards, including bank payment cards or electronic ID cards. It is fully compatible with the eObčanka application .
Thanks to the SIM card slot including SIMedit software for SIM management and memory card slots, the reader can also be used for data backup and transfer.
The connection is made via a 1.3 m long cable ending in a USB connector.
BASIC SPECIFICATIONS
Interface: USB 2.0
Card support:
ATM, CAC, ID, IC, SIS
SD, SDHC, SDXC, mini SDHC, mini SD with adapter
micro SD, micro SDHC, micro SDXC, Trans Flash
MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, MMC Micro
Standard size SIM cards, microSIM and nanoSIM with adapter
Supported OS:
Windows XP/ Vista/ 7/ 8/ 8.1/ 10 and later
Windows Server 2003/ 2008/ 2012/ 2016 and later
Mac OS X 10.x and above
Linux 2.4.x and higher
Dimensions: 77 × 54 × 52 mm
Weight: 91g
Color: black
The reader supports the following card specifications:
contact Smart cards complying with ISO 7816, classes A, B and C (5V, 3V and 1.8V)
standard ISO 7816, EMV 4.1 (EMV 2000 level 1)
protocols T=0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9)
PC Smart Card standard PC/SC 2.0
Microsoft Smart Card for Windows
I2C cards SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041
compliant with Microsoft WHQL USB Smart Card Reader
complies with the requirements of the FIPS 201 standard
SD 1.0/ 1.1 (SD - Secure Digital, up to 2 GB)
SD 2.0 (SDHC - Secure Digital High Capacity, up to 32 GB)
SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2 TB)
MMC 3.x/ 4.0/ 4.1/ 4.2
