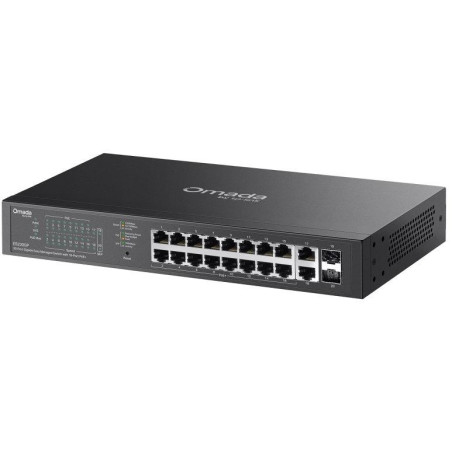

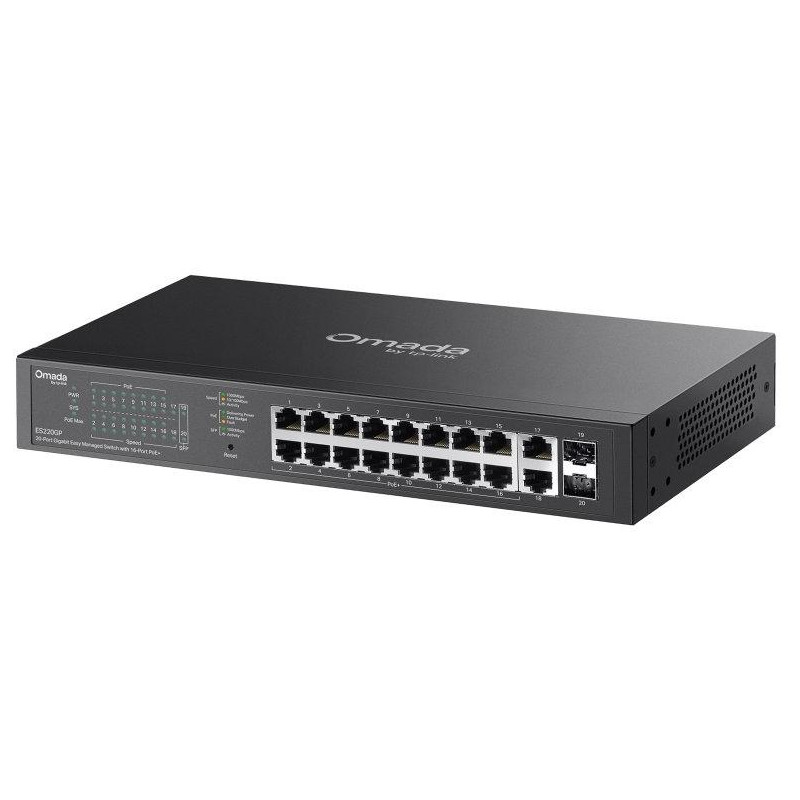

TP-Link ES220GP, Omada 20-Port Gigabit Easy Managed Switch, 2x GLAN, 16x GLAN PoE+, 2x SFP, 150W PoE budget, 1U

Professional 20-port Gigabit switch with advanced PoE+ features for corporate networks.

The Omada ES220GP switch offers 18 Gigabit RJ45 ports , 16 of which support PoE+ 802.3af/at with a total budget of 150W and up to 30W per port . Two additional Gigabit SFP slots allow flexible optical connectivity for extending the network over longer distances.

The device is optimized for surveillance applications with support for remote camera reboot, QoS for traffic prioritization, and port isolation for increased security. The fanless design ensures completely silent operation, while the robust metal housing allows for both desktop and wall mounting.

Omada SDN solution
The switch is part of a Software Defined Networking (SDN) platform that integrates access points, switches, and gateways under a single management. It supports Zero-Touch Provisioning for easy deployment and multi-site cloud management.

Advanced L2 features
It includes Link Aggregation with up to 4 groups of 8 ports, port mirroring, 802.1Q VLAN with support for up to 32 VLAN groups, QoS with 8 priority queues, and bandwidth control for traffic optimization.

Surveillance optimization
Special features for camera systems including QoS prioritization, port isolation for security, storm control and the ability to remotely restart connected cameras via the web interface.

BASIC SPECIFICATIONS

Ports: 18x 10/100/1000 Mbps RJ45, 2x Gigabit SFP

PoE standard: 802.3af/at on 16 ports

PoE budget: 150W total, up to 30W per port

Switching capacity: 40 Gbps

Packet forwarding rate: 29.76 Mpps

MAC address table: 8K entries

Flash memory: 64 Mbit
/> Power supply: 100–240V~ 50/60Hz 2.5A

Consumption: max. 182.43W (with full PoE load)

Operating temperature: -5 to +40 °C

Dimensions: 294 × 180 × 44 mm

Mounting: desktop/rackmount/wall mount
