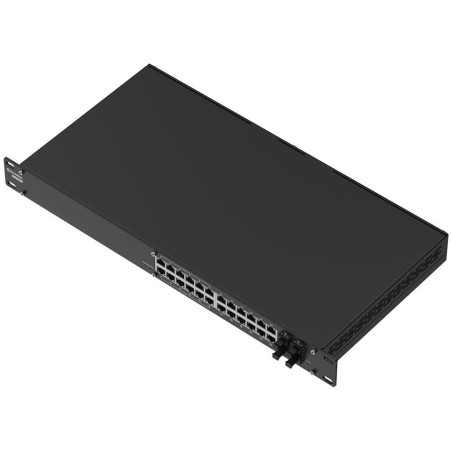

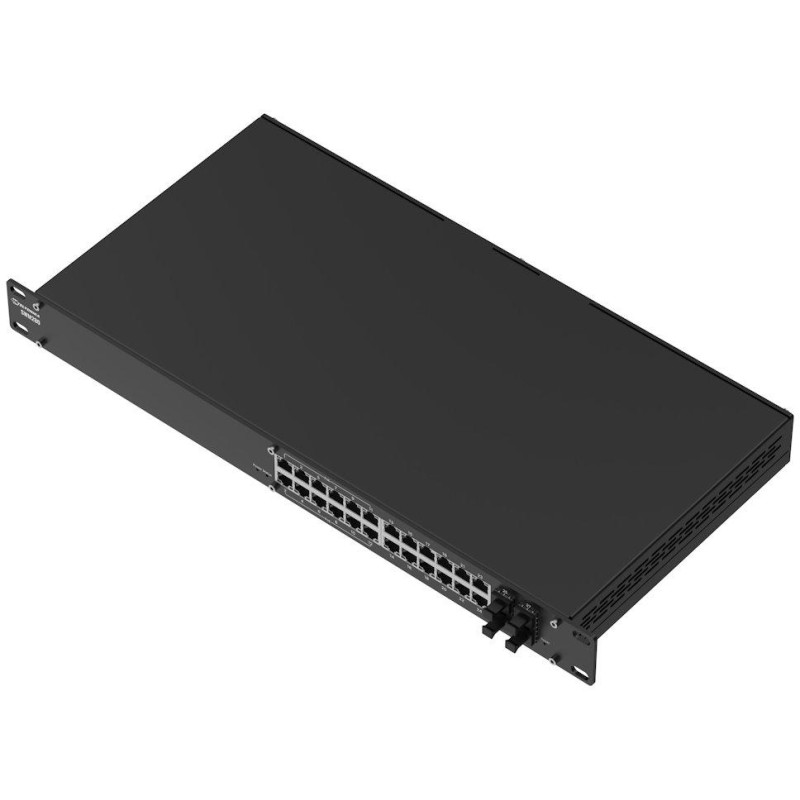

Teltonika SWM280 managed switch, 24x GbE (12x PoE+), 4x SFP, L2+, 19" rack

Powerful 24-port managed switch with advanced L2/L3 features and PoE+ power for professional network infrastructures.

The SWM280 is a high-end network switch combining 12 PoE+ ports with up to 30W per port and a total PoE budget of 300W , 12 Gigabit Ethernet ports and 4 SFP ports for optical connections. The switch supports advanced industrial protocols PROFINET, MRP and EtherNet/IP , making it an ideal solution for mixed industrial environments.

The device is equipped with RMS cloud management with a two-year license, enabling remote management, configuration and monitoring. With non-blocking throughput of 56 Gbps and support for jumbo frames of up to 10,000 bytes, it ensures high performance even with heavy network traffic.

Industrial protocols and compatibility
The switch supports PROFINET Class B (optional), MRP client/manager roles for redundant topologies, and EtherNet/IP for integration with industrial systems. These features enable deployment in demanding industrial applications.

Advanced network features
The device offers a complete set of L2+ features including loop protection , advanced VLAN management , DHCP server with wildcard MAC , and static IPv4/IPv6 routing . QoS implements SP/WFQ/WRR scheduling methods.

Management and diagnostics
The RMS cloud platform provides centralized management, alerting, FOTA updates, and advanced diagnostics. Locally, tools such as cable diagnostic, ping, traceroute, and the ability to restart PoE on specific ports are available.

BASIC SPECIFICATIONS

Processor: realtek single core 500 MHz MIPS-4KEc

Memory: 128MB DDR3 RAM

Ethernet ports: 24x RJ45 10/100/1000 Mbps

SFP ports: 4× SFP

PoE standard: 802.3at/af, up to 30W/port, total 300W

Throughput: 56 Gbps non-blocking

MAC table: 8K entries

Power: 100–240 VAC, 50/60 Hz, C14 connector

Consumption: 7.5 W (idle) / 325 W (max)

Dimensions: 483 × 44 × 234 mm

Weight: 1770g

Operating temperature: 0 to +50 °C

Protection: IP30
