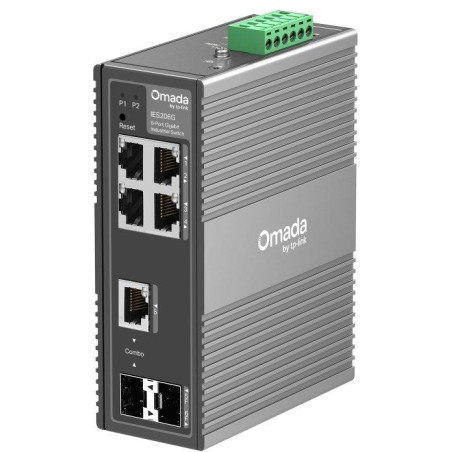

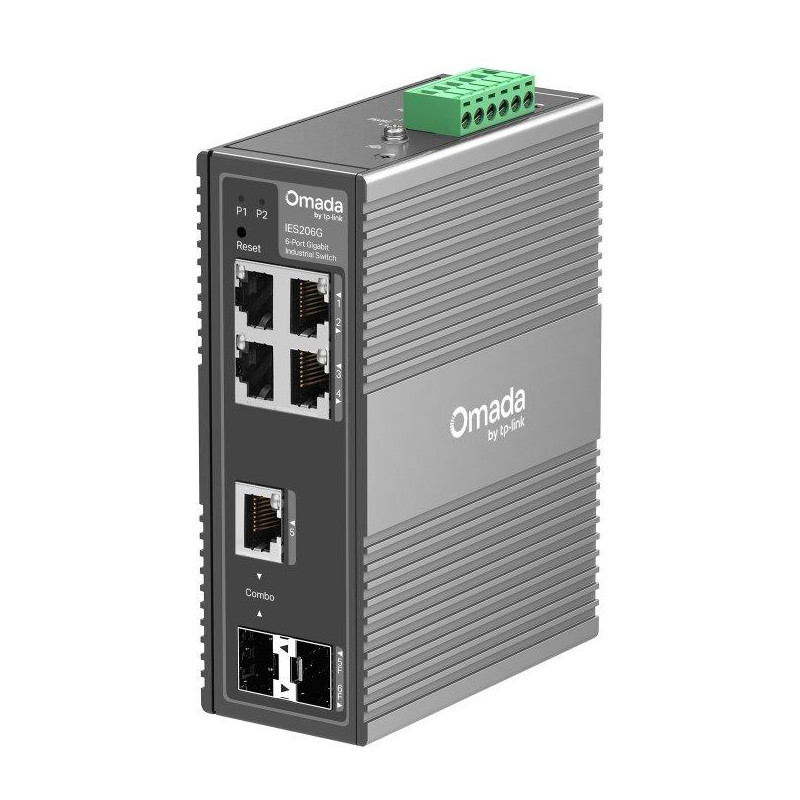

TP-Link IES206G - 6-port Omada Industry Switch, 4x GLAN, 1x SFP, 1x Combo Gigabit SFP

Highly durable industrial switch with 6 Gigabit ports for deployment in demanding conditions.

The Omada IES206G industrial switch offers 6 Gigabit ports in a configuration of 4× RJ-45, 1× Combo RJ-45/SFP and 1× SFP. Thanks to its robust design with a durable aluminum housing with IP40 protection and the ability to operate in an extreme temperature range of -40 °C to +75 °C, it is an ideal solution for industrial environments, outdoor installations and critical infrastructures.

The switch features 1+1 redundant power input with a wide range of 9.6-60V DC and 6kV surge protection for maximum operational reliability. It supports advanced network features such as VLAN, QoS and STP/RSTP and can be easily managed via the Omada cloud platform.

Redundant power supply for maximum reliability
The switch features two independent power inputs with a wide range of 9.6-60V DC, ensuring continuous operation even if one power source fails. This feature is crucial for mission-critical applications where high network availability is required.

Advanced network features
The IES206G supports a wide range of networking features including 802.1Q VLAN (up to 32 VLAN groups), QoS with 8 priority queues, STP/RSTP for loop prevention, IGMP Snooping for efficient multicast traffic, and Link Aggregation for increased throughput and redundancy.

Flexible management
The switch can be managed via a web interface or the Omada cloud platform. When used with an Omada controller (hardware, software, or cloud), you get centralized management, zero-touch provisioning, automatic device discovery, and bulk configuration.

BASIC SPECIFICATIONS

Ports: 4× 10/100/1000 Mbps RJ-45, 1x Gigabit combo SFP/RJ-45, 1x Gigabit SFP

Switching capacity: 12 Gbps

Packet forwarding speed: 8.93 Mpps

MAC table: 8K addresses

Buffer memory: 4 Mbit

Jumbo frames: 15 KB

Power supply: redundant 1+1, DC 9.6-60V

Surge protection: ± 6 kV for Ethernet ports, ± 4 kV for power inputs

Operating temperature: -40 to +75 °C

Cooling: passive (no fans)

Mounting: DIN rail or wall mounting

Dimensions: 129 × 95 × 45 mm

Certification: FCC, CE, RoHS
