PLANET CS-6306R

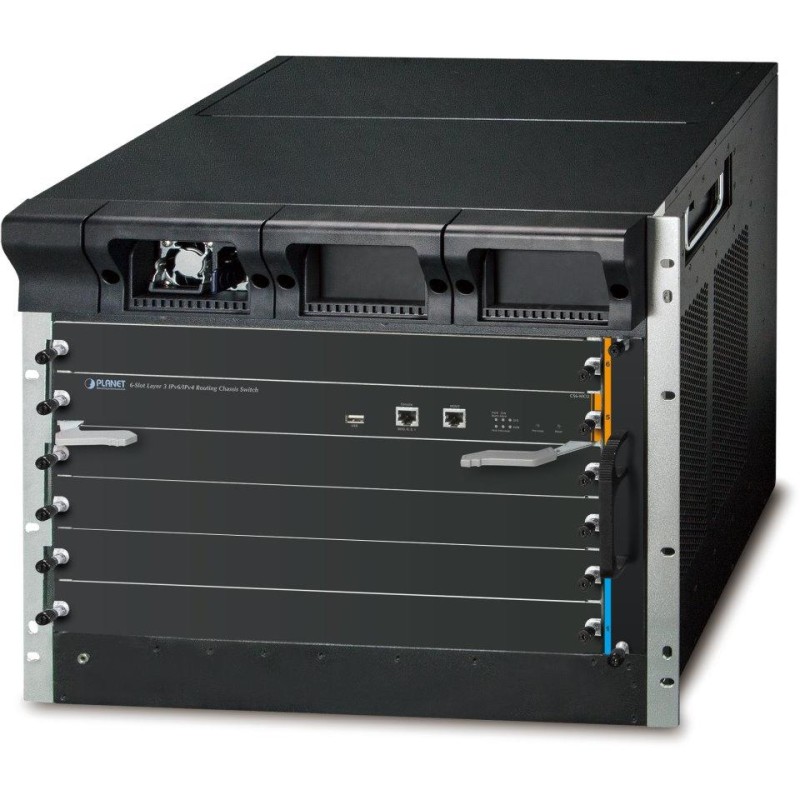

Illustrative photo - The device is supplied without a management module.
The CS-6306R Modular Core Layer Routing Switch is specially designed for large-scale network applications , such as enterprises, campuses, headquarters, ISPs, or data centers, where flexible configuration, large capacity, high density, maximum reliability, and advanced data traffic management are required.
Modular switch, 6x slots for optional modules (4x switch slot, 2x management slot), 9U height, redundant power supply (3 slots), supplied with one 550 W power supply .
Max configuration:
- 192x 10/100/1000 Base-T RJ-45
- 192x 100/1000 Base-SX/LX SFP
- 64x 10G SFP+
- 16x 40G QSFP+
BASIC SPECIFICATIONS
Physical properties:
Ports: according to installed modules
Memory: 32k MAC addresses, 32 MB buffer
Throughput: 2.56 Tbps bus, 810 Mpps operational (64B)
Memory: 64MB Flash, 1GB RAM
Transmission support: JumboFrame 9kB
IP protocol version: IPv4, IPv6
Design: modular, 9U height
Power supply: 3x slot for AC 100-240 V power supply (1x 550 W power supply included)
Operating temperature: 0 to +50 °C
Dimensions: 443.5 x 397 x 370 mm (482 x 397 x 370 mm with rack mounts)
Weight: 21.6 kg (without modules and power supply)
Administration functions:
Management: Console, Telnet, Web, SNMP v1/v2c/v3, SSH v2, SSL v3
Access Control: ACL based on IP/MAC/time/sport/dport/protocol/ToS/Precedence, input filter up to 2560 records, output filter up to 1024 records
L3 routing: max. 256 VLAN interfaces for IPv4/IPv6, RIP v1/v2, RIPng, OSPF v2/v3, BGP (Border Gateway Protocol), static routing, BGP4+, PIM-DM and PIM-SM, PIM-SSM
ACL filter:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
Time ACL, traffic filtering by time
QoS traffic prioritization: 8 levels, traffic prioritization by IP, MAC, VLAN id, TOS, Precedence, DiffServ, DSCP, 802.1p priority CoS + support for Weighted Round Robin (WRR) and Strict priority (SP)
VLAN support:
802.1Q VLAN tag
up to 4k VLAN groups
802.1ad Q-in-Q VLAN stacking/tunneling
Private VLAN
GVRP for VLAN management
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Link Aggregation: IEEE 802.3ad LACP
Multicast: IGMP v1/v2/v3, IGMP querier mode support, MLD v1/v2, up to 8k MLD/IGMP groups support, Multicast VLAN Register (MVR) support
Authentication of connected devices: TACACS+ and IPv4/IPv6 via RADIUS
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, SFP-DDM (Digital Diagnostic Monitor)
