Dell EMC Networking N3248TE
This is a sample configuration.
For an individual configuration and price quote with a project discount, please contact your sales representative or product managers at dell@100mega.cz.
Managed switch offering 48 RJ-45 ports with speeds up to 1 GbE . There are also 4 SFP+ ports with speeds up to 10 GbE . The switching capacity of the switch is up to 576 Gb/s and the routing speed is up to 800 Mp/s . The power supply is provided by a 550 W power supply. The switch format is 1RU .

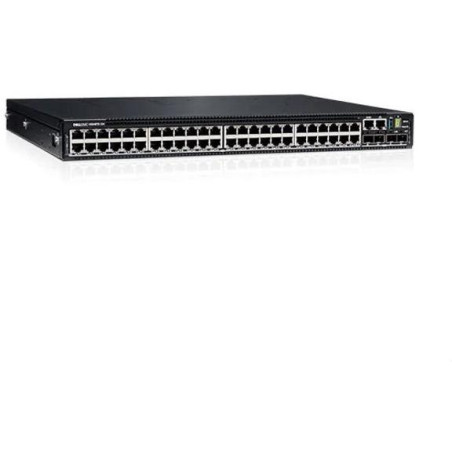

The photo is for illustrative purposes only, the switch does not have QSFP28 ports.
BASIC SPECIFICATIONS
Physical properties:
Ports: 48 x RJ-45 10/100/1000 Mbps, 4 x SFP+ 10 Gbps, 1 x USB port for configuration
Memory: 32k MAC addresses, 8 Mbit buffer
Throughput: 576 Gbps bus, 800 Mpps operational
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: internal 550 W AC power supply, total power consumption up to 212 W
Protection: no
Operating temperature: 0 to 45 °C
Dimensions: 434.9 x 400.1 x 43.4 mm
Weight: 6990g
Administration functions:
Management: Telnet, Web, SNMP SSH/SSL, SNMP v1, v2, v3
L3 routing: max. 128 VLAN interfaces, OSPFv2/v3, BGP, VRF, BFD, RIPv1/v2
Access Control: IP and MAC based ACL protocol
ACL filter and bonding:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering based on MAC addresses
QoS traffic prioritization: traffic prioritization by port
VLAN support: IEEE 802.1Q
up to 128 VLAN IDs
Private VLAN Edge (PVE)
Protocol-based VLAN
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: yes
Link Aggregation: IEEE 802.3ad LACP
Multicast IGMP: IGMP v1/ v2/ v3, IGMP querier mode support
Authentication of connected devices: RADIUS, TACACS+
DHCP Snooping: no
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: no
