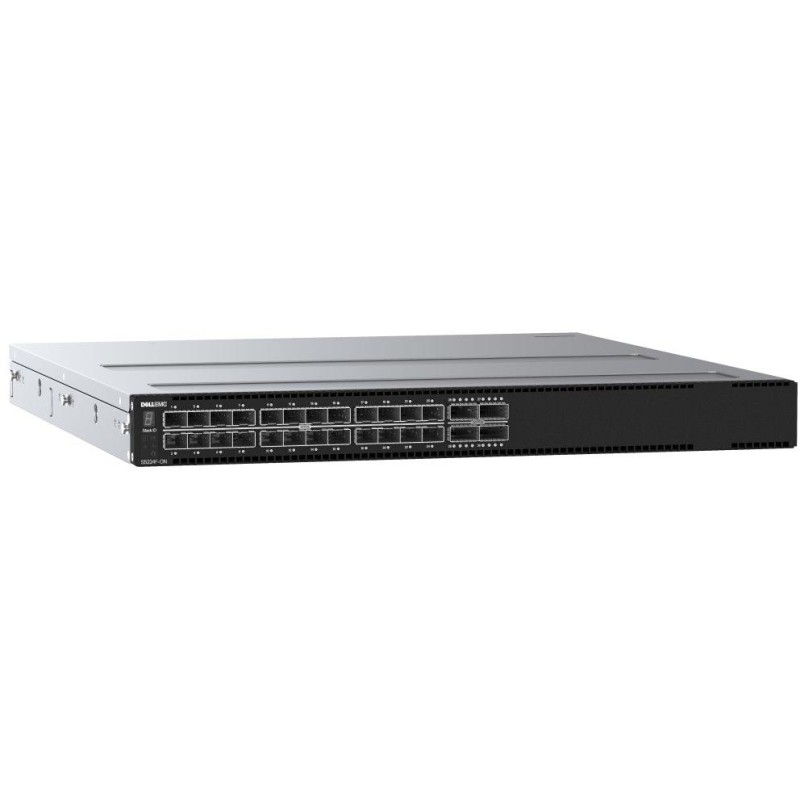

Dell Networking S5224F-ON
Gain performance, flexibility, and cost efficiency with this ToR switch that features 24x 25GbE SFP28, 4x 100GbE QSFP28 , and ONIE (Open Network Install Environment) for unattended installation of alternative network operating systems.
This product comes with a 1 year Collect And Return (CAR) warranty.
In the event of a complaint, DELL will remove the product and return it to the customer within 10 days, repaired. Valid for the entire Czech Republic and Slovakia.
In case of a technical problem, you can contact DELL technical support at 225 772 727.
BASIC SPECIFICATIONS
Physical properties:
Ports: 24 x 25GbE SFP28, 4 x 100GbE QSFP28, 1 x USB-A, 1 x microUSB, 2 x RJ45 (for management)
Memory: 160k MAC addresses, 32 MB buffer
Throughput: 1.08 Tbps bus (2.16 Tbps full duplex), operational 1488 Mpps
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: redundant
Protection: no
Operating temperature: 0 - 45 °C
Dimensions: 460 x 434 x 44 mm
Weight: 9.7 kg
Administration functions:
Management: console via RJ-45 (RS-232 signaling) or microUSB, telnet, FTP, TACACS, RADIUS, SSH, NTP, SSHv2, SNMP v1/2c
Access Control: IP and MAC based ACL protocol
VLAN support:
IEEE 802.1Q
4000 VLANs (L2)
VLAN Protocol
VLAN Tagging, double VLAN Tagging
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
protocol RPVST+, protocol IEEE 802.1t Rapid Per VLAN Spanning Tree plus
Port mirroring: yes
Link Aggregation: IEEE 802.3ad LACP
Authentication of connected devices: IEEE 802.1x, RADIUS, TACACS
DHCP Snooping: no
LLDP: yes
Wiring diagnostics: no
