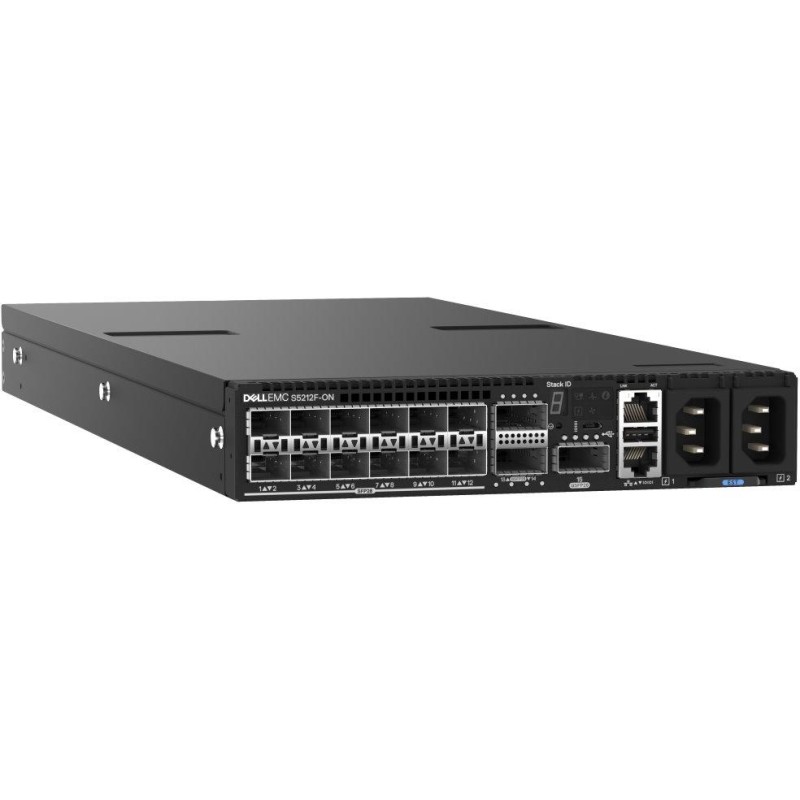

Dell Networking S5212F-ON
Gain performance, flexibility, and streamline costs with this ToR switch that features 12x 25GbE SFP28, 3x 100GbE QSFP28 , and ONIE (Open Network Install Environment) for unattended installation of alternative network operating systems.
This product is covered by a 1-year ProSupport on-site next business day warranty.
Repairs under this warranty service take place anywhere in the Czech Republic the next business day.
It doesn't even have to be at the company headquarters - you can be on vacation, on a business trip, it doesn't matter.
Just call +420 774 765 521, report the serial number and defect, and DELL will take care of everything.
BASIC SPECIFICATIONS
Physical properties:
Ports: 12 x 25GbE SFP28, 3 x 100GbE QSFP28, 1 x USB-A, 1 x microUSB, 2 x RJ45 (for management)
Memory: 160k MAC addresses, 32 MB buffer
Throughput: 1.08 Tbps bus (2.16 Tbps full duplex), operational 892 Mpps
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: redundant
Protection: no
Operating temperature: 0 - 45 °C
Dimensions: 460 x 209 x 44 mm
Weight: 4.5 kg
Administration functions:
Management: console via RJ-45 (RS-232 signaling) or microUSB, telnet, FTP, TACACS, RADIUS, SSH, NTP, SSHv2, SNMP v1/2c
Access Control: IP and MAC based ACL protocol
VLAN support:
IEEE 802.1Q
4000 VLANs (L2)
VLAN Protocol
VLAN Tagging, double VLAN Tagging
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
protocol RPVST+, protocol IEEE 802.1t Rapid Per VLAN Spanning Tree plus
Port mirroring: yes
Link Aggregation: IEEE 802.3ad LACP
Authentication of connected devices: IEEE 802.1x, RADIUS, TACACS
DHCP Snooping: no
LLDP: yes
Wiring diagnostics: no
