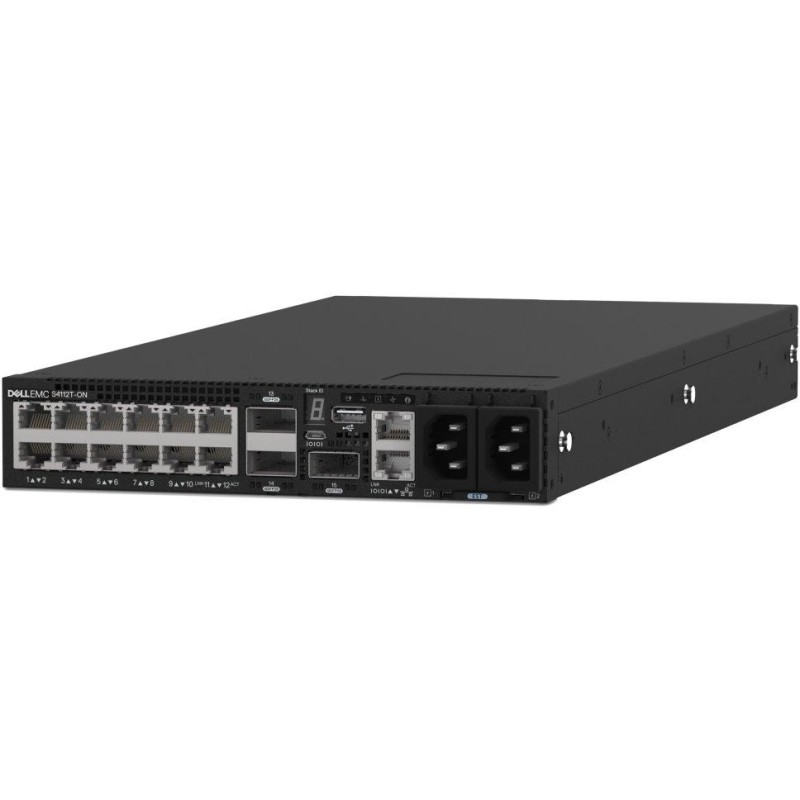

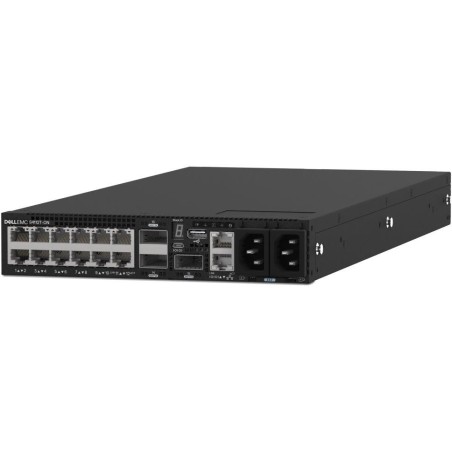

Dell Networking S4112T-ON
Gain performance, flexibility, and cost efficiency with this ToR switch that features 12x 10Gbase-T RJ-45 ports, 3x 100GbE QSFP28 ports , and ONIE (Open Network Install Environment) for unattended installation of alternative network operating systems.
This product comes with a 1 year Collect And Return (CAR) warranty.
In the event of a complaint, DELL will remove the product and return it to the customer within 10 days, repaired. Valid for the entire Czech Republic and Slovakia.
In case of a technical problem, you can contact DELL technical support at 225 772 727.
BASIC SPECIFICATIONS
Physical properties:
Ports: 12 x 10Gbase-T RJ-45, 3 x 100Gb QSFP28, 1 x USB-A, 1 x microUSB, 2 x RJ45 (for management)
Memory: 272k MAC addresses, 12 MB buffer
Throughput: 840 Gbps bus, 630 Mpps operational
Transmission support: JumboFrame 9K
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: redundant
Protection: no
Operating temperature: 5 - 40 °C
Dimensions: 450 x 209 x 41.25 mm
Weight: 3.83 kg
Administration functions:
Management: console via RJ-45 (RS-232 signaling), telnet, FTP, TACACS, RADIUS, SSH, NTP, SSHv2, SNMP v1/ v2
Access Control: IP and MAC based ACL protocol
VLAN support:
IEEE 802.1Q
4000 VLANs (L2), 500 VLANs (L3)
VLAN Protocol
VLAN Tagging
GVRP
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
protocol RPVST+, protocol IEEE 802.1t Rapid Per VLAN Spanning Tree plus
Port mirroring: yes
Link Aggregation: IEEE 802.3ad LACP
Authentication of connected devices: IEEE 802.1x, RADIUS, TACACS
DHCP Snooping: no
LLDP: yes
Wiring diagnostics: no
