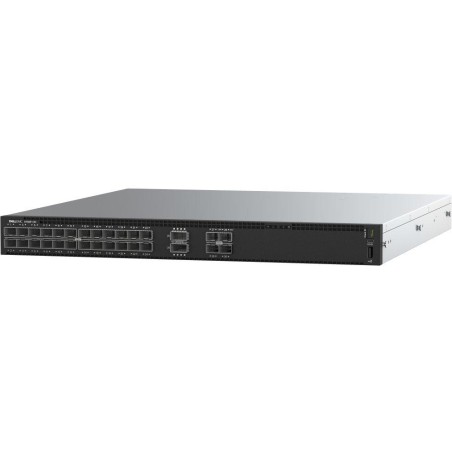

Dell Networking S4128F-ON
Gain performance, flexibility, and cost efficiency with this ToR switch that features 28 fixed 10GbE SFP+ ports, 2 100GbE QSFP28 ports , and ONIE for unattended installation of alternative network operating systems.
This product comes with a 1 year Collect And Return (CAR) warranty.
In the event of a complaint, DELL will remove the product and return it to the customer within 10 days, repaired. Valid for the entire Czech Republic and Slovakia.
In case of a technical problem, you can contact DELL technical support at 225 772 727.
BASIC SPECIFICATIONS
Physical properties:
Ports: 28 x 10Gb SFP+, 2x 100Gb QSFP28, 1 x USB-A, 1 x microUSB, 2 x RJ45 (for management)
Memory: 272k MAC addresses, 12 MB buffer
Throughput: 960 Gbps bus, 720 Mpps operational
Transmission support: JumboFrame 9K
IP protocol version: IPv4, IPv6
Design: rackmount 1U
Power supply: redundant (2 x hot-swap power supply)
Protection: no
Operating temperature: 5°C - 40°C
Dimensions: 457 x 431 x 44 mm
Weight: 8.92 kg
Administration functions:
Management: console via RJ-45 (RS-232 signaling), telnet, FTP, TACACS, RADIUS, SSH, NTP, SSHv2, SNMP v1/ v2
Access Control: IP and MAC based ACL protocol
VLAN support:
IEEE 802.1Q
4000 VLANs (L2), 500 VLANs (L3)
VLAN Protocol
VLAN Tagging
GVRP
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
protocol RPVST+, protocol IEEE 802.1t Rapid Per VLAN Spanning Tree plus
Port mirroring: yes
Link Aggregation: IEEE 802.3ad LACP
Authentication of connected devices: IEEE 802.1x, RADIUS, TACACS
DHCP Snooping: no
LLDP: yes
Wiring diagnostics: no
