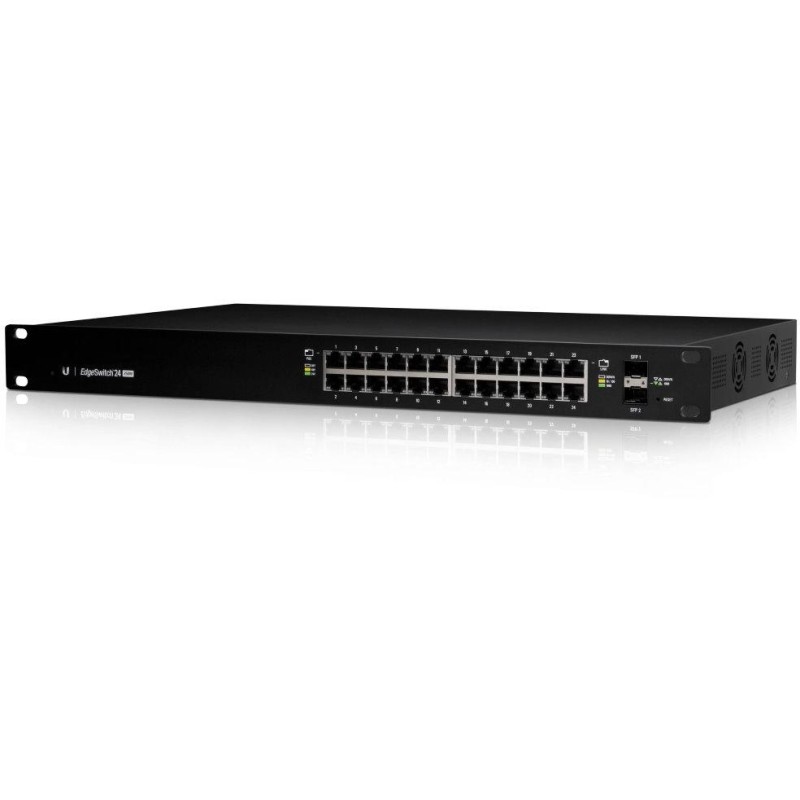

Ubiquiti EdgeSwitch ES-24-250W
The EdgeSwitch ( ES-24-250W ) is ideal for small and medium-sized businesses that require a reliable, managed switch in a professional-grade rack-mount design.
EdgeSwitch ES-24-250W is a high-performance, full gigabit L2+L3 switch from the well-known manufacturer Ubiquiti from the EdgeMAX platform. It is equipped with 24 Gbit Ethernet ports and two Gbit SFP ports . The switch has a high throughput of up to 26 Gbps .
One of the biggest advantages of this switch is the support of PoE+ and passive PoE on each port . By default, the EdgeSwitch automatically detects 802.3af/at on the connected device so that the device can automatically receive PoE. Passive PoE 24V must be manually enabled.
- maximum PoE+ power per port is 34.2 W
- maximum power of passive PoE 24V per port is 17 W
- The maximum power of this model is 250 W.
Thanks to these unique features, EdgeSwitch will allow you to significantly simplify your network infrastructure.
It is equipped with the EdgeOS operating system with web administration. The administration is built on the same engine as most new Ubiquiti devices. Thanks to the CLI (Command Line Interface) terminal console, available via telnet and SSH, it is possible to use the full potential of this switch and configure everything you need in the command line.
EdgeSwitch stands out for its high-quality, robust design and is equipped with four fans to ensure optimal cooling.
The package includes a power cable up to 230 V and a rack mounting kit.
The EdgeMAX system is constantly being improved, so we recommend always using the latest firmware .
BASIC SPECIFICATIONS
Ports: 24× RJ-45, 2× SFP
Switching capacity: 52 Gbps
Routing speed: 38.69 Mp/s
PoE: yes
Max power consumption: 250 W
