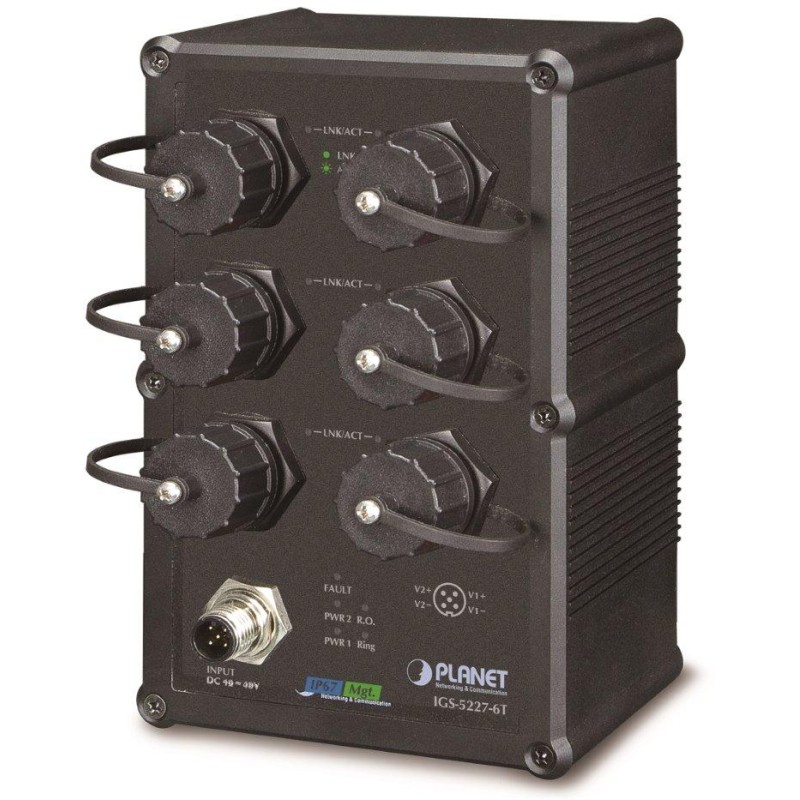

PLANET IGS-5227-6T
Industrial gigabit 6-port switch for mobile installations according to EN50155, RJ-45 connectors, waterproof with IP67 protection, aluminum housing, extended operating temperature range -40 to 75°C.
Web / SNMPv3 / Telnet management, L3 static routing, VLAN, IGMPv3, MLD, ERPS ring, Spanning tree, QoS, Shaper, DHCP Snooping.
Cabling diagnostics. ESD protection up to 6kV. DIN rail or wall mounting. Possibility of redundant DC 9~48V power supply.
Industrial Ethernet switches are designed for demanding operating conditions with a wide range of operating temperatures, unstable power supply and frequent shocks. Versions of the switches of the series with an extended temperature range and waterproof design with the possibility of application in vehicles according to EN50155.
The IGS series switches are easily installed on a standard DIN rail or directly on the wall, enabling the deployment of well-known Ethernet technology in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
It is very robust, waterproof with an IP67 rating and is constructed in an aluminum housing, the Ethernet ports use special industrial waterproof RJ-45 connectors with ESD protection against electrostatic discharge.
BASIC SPECIFICATIONS
Physical properties:
Ports: 6 x RJ-45 10/100/1000BASE-T
Memory: 8k MAC addresses, 4Mb buffer
Throughput: 12 Gbps bus, operational 8.9 Mpps (64B)
Transmission support: JumboFrame 9K
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: DC 9~48V redundant - connection possible from two different sources (not included), power consumption up to 8 W
Protection: ESD up to 6kV, reverse polarity protection, power connection on the terminal block
Operating temperature: -40°C - 75°C, humidity up to 95%
Dimensions: 163 x 103 x 68 mm
Weight: 1069g
Administration functions:
Management: Telnet, Web, SNMP v1, v2c
Access Control: IP and MAC based ACL protocol, 256 rules
L3 static routing: 32 rules, 8 VLAN interfaces
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: 8 levels, traffic prioritization by port, DSCP/ToS in IP packet, 802.1p or 802.1Q tags
Port shaper settings in the range of 100Kbps - 1000Mbps
VLAN support: IEEE 802.1Q
up to 255 VLAN groups, up to 4095 VLAN IDs
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
IP Subnet-based VLAN
Multicast VLAN Registration
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, both
Link aggregation: IEEE 802.3ad LACP, 2 ports in 3 groups
Himlticast IGMP: IGMP v1/ v2/ v3, up to 255 groups, support IGMP querier mode
Authentication of connected devices: IEEE 802.1x (RADIUS) - IP+MAC binding, VLAN + MAC binding, 256 rules
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes, determines the length of the cabling and possible distance to the fault
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by high-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short voltage dips, short interruptions and slow voltage changes
