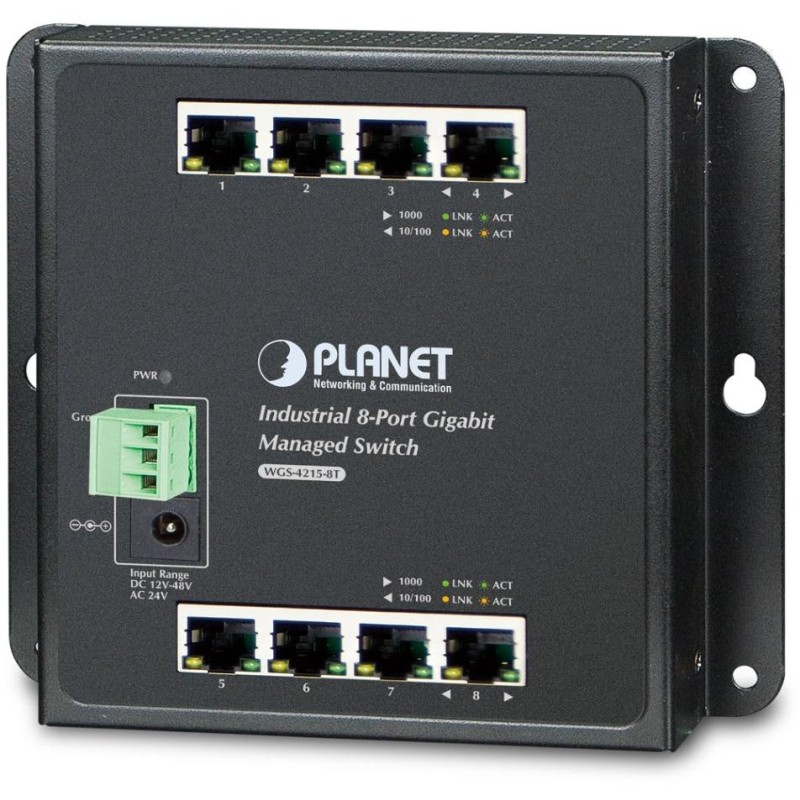

PLANET WGS-4215-8T
Managed Gigabit switch 8× 1000Base-T ports. Web/SNMPv3/telnet management, IPv4/IPv6 support.
VLAN 802.1Q, QoS-shaper, static LACP trunk, IGMPv3, Spannig tree. ACL+MAC filter, RADIUS/TACACS, DHCP snooping.
Wall or DIN installation, metal design IP30, drop and vibration resistant. ESD port protection, dual DC 12~48 V power supply, operation at -40 to 75 °C, fanless.
Gigabit switch with network management for wall or rack installation, the design is resistant to drops and vibrations, including IP30 protection. Dual power supply can be used in case of failure of one of the DC sources.
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 8x RJ-45 10/100/1000 BASE-T
Memory: 8k MAC addresses, 4.1 Mbit buffer
Throughput: 16 Gbps bus, operational 11.9 Mpps (64B)
Transmission support: JumboFrame 10 KB
Design: DIN rail, wall-mounted
Power supply: 12–48 V DC power supply, dual jack or PIN terminal, total power consumption up to 10 W (power supply not included)
Protection: ESD 4–8 kV
Operating temperature: –40 to 75°C
Dimensions: 148 × 134 × 25 mm
Weight: 496g
Administration functions:
Management: Telnet, Web, SNMP v1, v2c, v3
Access Control: IP and MAC based ACL protocol
ACL filter and bonding:
IP ACL, traffic filtering by IP address, protocol, port, TCP flags, DSCP
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
QoS traffic prioritization: traffic prioritization according to 802.1pa according to ToS/DS in IP packets, possibility of setting limits on packets sent per port and according to QoS rules
VLAN support: IEEE 802.1Q
up to 256 VLAN groups, up to 4094 VLAN IDs
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
Private VLAN
VLAN Protocol
Voice VLAN
VLAN management
GVRP
Spanning Tree Protocol: STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring: RX, TX, RX+TX, many to one
Link aggregation: IEEE 802.3ad LACP, 8 ports in 4 groups
IGMP multicast: IGMP v2/ v3, up to 256 groups, IGMP querier mode support
Authentication of connected devices: IEEE 802.1x (RADIUS) - IP+MAC binding, VLAN + MAC binding, 256 rules
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Wiring diagnostics: yes
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration of 50g, long-term 4g, (IEC-60068-2-27)
electrical safety according to CE EN-60950
EMC Electronic Compatibility (EMI):
ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia equipment
EMC immunity requirements (EMS):
ČSN EN 55024 A1:2015 - Information technology equipment
ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia equipment
ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
ČSN EN 61000-4-3 A2:2010 - Radiated radio frequency electromagnetic fields
ČSN EN 61000-4-4:2012 - Electrical fast transients/bursts EFT
ČSN EN 61000-4-5:2014 - Surge and overvoltage
ČSN EN 61000-4-6:2013 - Immunity to conducted disturbances induced by radio-frequency fields
ČSN EN 61000-4-8:2009 - Power frequency magnetic field
ČSN EN 61000-4-11:2004 - Short-term voltage dips, short interruptions and slow voltage changes
