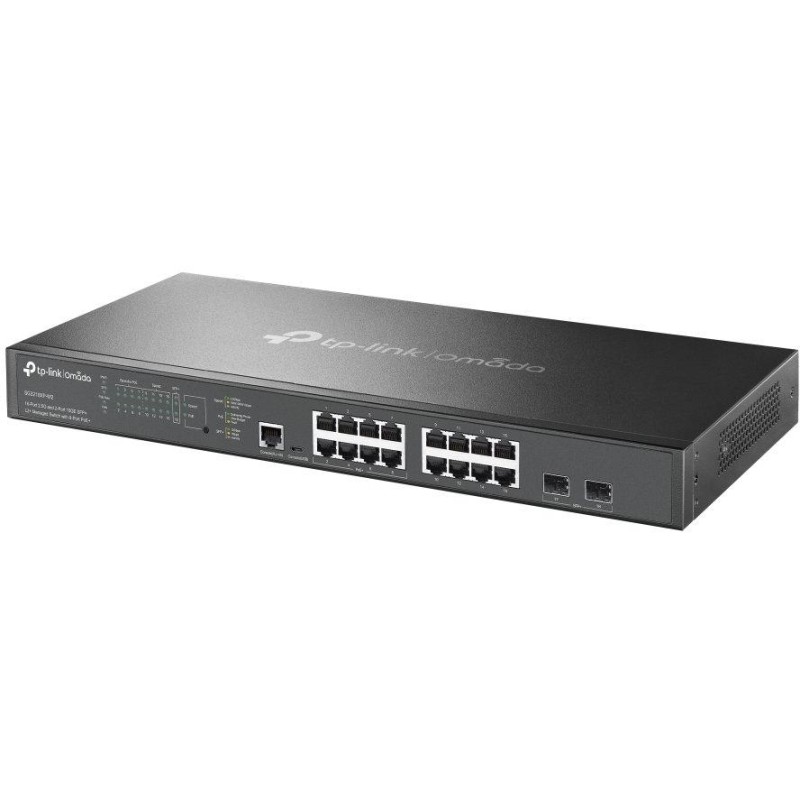

TP-Link SG3218XP-M2 Omada Switch 16x 2.5GLAN (8x Non-PoE + 8x PoE+), 2x 10G SFP+, PoE budget 240W, 1U 19"

Powerful 16-port 2.5G switch with PoE+ for modern Wi-Fi 7/6E/6 networks.

Introducing the TP-Link Omada SG3218XP-M2 16-port 2.5Gbit/s professional managed switch, which is an ideal solution for deployment in modern networks with high-speed Wi-Fi 7/6E/6 access points. The switch offers 8 ports with PoE+ (802.3at/af) support with a total power of 240W and 8 additional standard 2.5G ports without PoE. 2 uplink ports of 10Gbit/s SFP+ are available for backbone connections.

The switch fully integrates with the Omada SDN platform with Zero-Touch Provisioning support, enabling centralized management via the cloud or the Omada app. With advanced L2+ features including static routing , robust security mechanisms, and traffic optimization, it is an ideal choice for demanding corporate environments, hotels, schools, and any location requiring a reliable high-speed network infrastructure.

BASIC SPECIFICATIONS

Ports: 8× 2.5 Gbit/s RJ-45 with PoE/PoE+ support, 8× 2.5 Gbit/s RJ-45, 2× 10 Gbit/s SFP+, 1× RJ-45 console port, 1× micro USB console port

PoE: 8 PoE+ ports (802.3at/af), up to 30W per port, total power 240W

Performance: 120 Gbps switching capacity, 89.28 Mpps packet forwarding rate

Memory: 16K MAC addresses, 12 Mb packet buffer

L3 functions: 32 IPv4/IPv6 interfaces, 48 static routes, DHCP server/relay

Management: web interface, CLI, SNMP v1/v2c/v3, Omada SDN, cloud management

Power supply: AC 100-240 V, 50/60 Hz, max. consumption 299.4 W

Dimensions: 440 × 180 × 44 mm

Operating temperature: 0 to 50°C, humidity 10-90%

Certification: CE, FCC, RoHS
