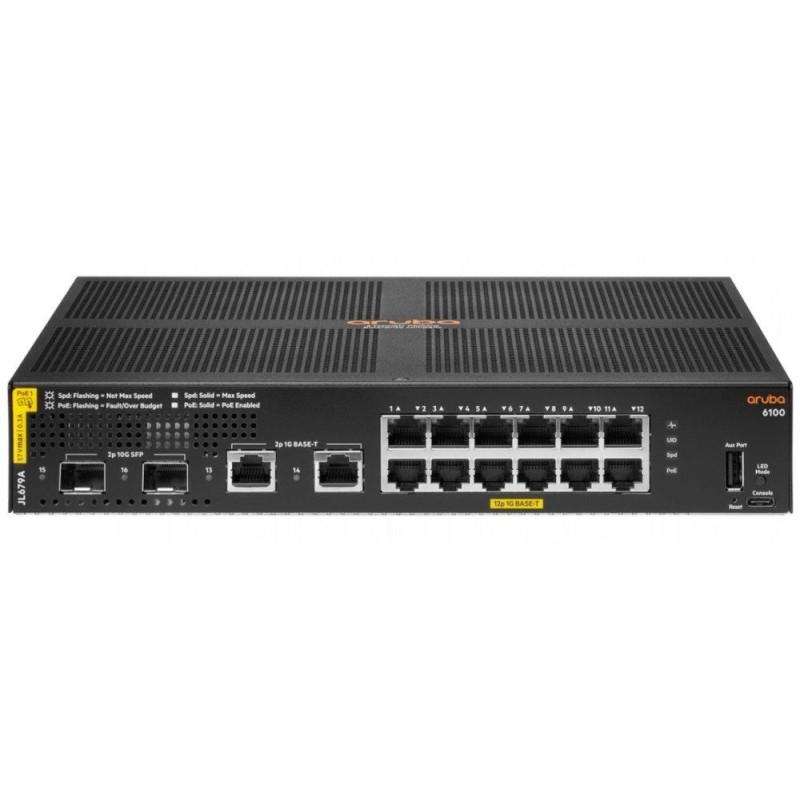

HPE Aruba Networking CX 6100 12G Class4 PoE 2G/2SFP+ 139W
Fully managed enterprise-class PoE+ switch offering 12× 10/100/1000 Mbps RJ-45 ports, 2× 10/100/1000 Mbps RJ-45 ports with PoE+ (802.3af/at) and 2× 1/10 GbE SFP+ slots . The switch has a switching capacity of 68 Gbps and a routing speed of 45.1 Mpps . It provides Layer 2 functionality with support for static routing, ACL, QoS, traffic prioritization, sFlow and IPv6. The device is powered by a dual-core 1.0 GHz processor , 4 GB of RAM and 16 GB of eMMC storage.
The HPE Aruba Networking CX 6100 is a modern entry-level switch series ideal for branch offices, small and medium-sized businesses. Designed for reliable, simple and secure access, this series provides a convenient solution for enterprise networks supporting IoT, mobile and cloud applications.
The HPE Aruba Networking CX 6100 Series provides flexible management and simplified configuration using HPE Aruba Networking Central Software, HPE Aruba Networking Switch Multi-Edit Software, an easy-to-use web-based GUI, or a standard CLI.
BASIC SPECIFICATIONS
Ports: 14× 10/100/1000Base-T RJ-45, 2× 1/10GbE SFP+, 1× USB-C console port, 1× USB host port
Switch capacity: 68 Gbps
Routing speed: 45.1 Mpps
PoE support: yes, 802.3af/at (139W total)
Dimensions: 255 × 254 × 43.9 mm
Weight: 2.78 kg
