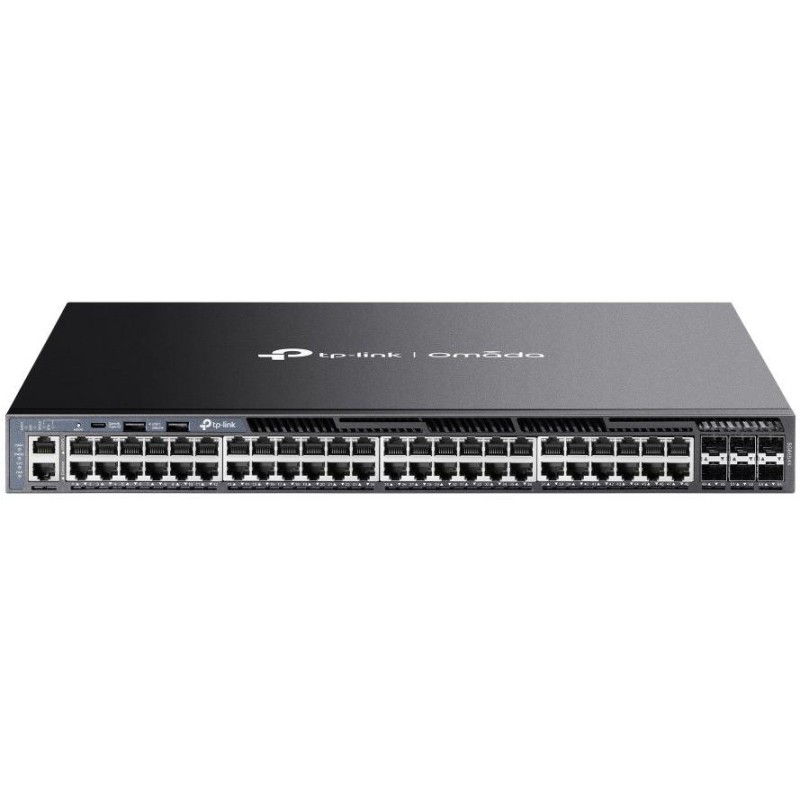

TP-Link SG6654X, Omada 48-Port Gigabit L3 Switch, 48x GLAN, 6x 10GB SFP+, 2x USB, 1U

TP-Link SG6654X

Managed L3 switch featuring 48× GbE RJ-45, six 10G SFP+ slots and redundant power supply

High-speed L3 managed switch with six SFP+ uplink slots. The switch capacity is 216 Gbps and the routing speed is up to 160.7 Mpps .

It supports a wide range of L3 routing protocols for scalable networks. It supports static routing, RIP, OSPF, DHCP server and DHCP relay. Other security features include port security, Storm Control and DHCP Snooping to protect against a wide range of network threats. The device has a built-in list of typical DoS attacks, making it easier than ever to protect against them. User access to the network can be controlled using 802.1X authentication, which works with RADIUS/Tacacs+ to grant access only to users with valid credentials. Advanced IGMP Snooping ensures that the switch intelligently forwards multicast streams to only the appropriate subscribers, reducing network traffic by data that is not needed.

•

• 48x GbE RJ-45 port and 6x 10G SFP+ slot

• Switching capacity up to 216 Gbps per unit

• Physically stackable up to 8 units for increased performance and redundancy

• Advanced L3 functions: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, DHCP Server/Relay

• Security: ACL, port security, DoS protection, 802.1X

• High availability thanks to two built-in power supplies, VRRP and ERPS

• Centralized management via Omada SDN cloud controller

• Self-managed via web interface, CLI, SNMP and RMON


BASIC SPECIFICATIONS

Ports: 48× GbE RJ-45, 6× 10G SFP+ slot, 1× RJ-45 console port, 1× RJ-45 (management), 2× USB 2.0, 1× USB-C console port

Switch capacity: 216 Gbps

Routing speed: 160.7 Mpps

PoE: no

Power supply: AC 100-240 V (50/60 Hz), power consumption up to 39.8 W

Dimensions: 440 × 380 × 44 mm
