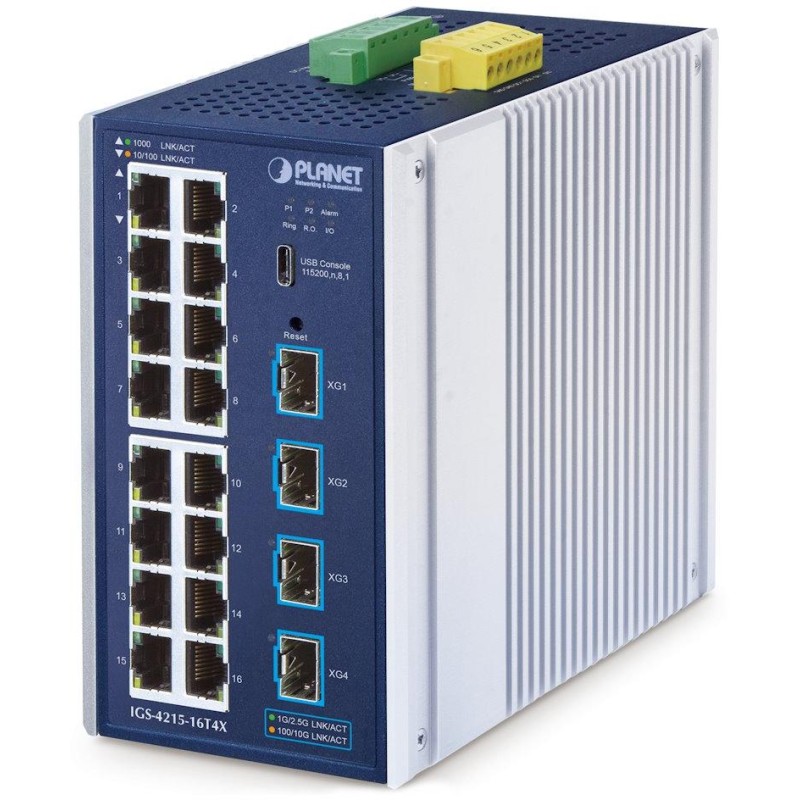

PLANET IGS-4215-16T4X
Industrial managed switch with 16× RJ-45 10/100/1000 Base-T, 4× 10G Base-SR/LR SFP+ (backward compatible with 1000BASE-SX/LX/BX), SFP-DDM diagnostics, 2× digital input DI, 2× digital output DO .
Support IPv4/IPv6, Web/SNMP/Telnet/console , UNI-NMS + Smart Discovery Utility and CloudViewer app , VLAN 802.1Q, 802.3x Flow Control , Spanning Tree, Multiple/Rapid Spanning Tree, link aggregation 802.3ad LACP , QoS, DHCP snooping and DHCP Option82, LLDP, IGMP v1/v2/v3, RADIUS, TACACS+, ERPS Ring (ITU-T G.8032) .
Alarm output in case of power failure, ESD protection up to 6 kV, IP30 protection, metal housing, operating temperature -40 to +75 °C , DIN rail mounting or directly on the wall, dual power supply DC 9–48 V or AC 24 V.
Industrial Ethernet switches are designed for demanding operating conditions with a wide range of operating temperatures, unstable power supply, and frequent shocks.
IGS series switches are easily installed on a standard DIN rail or directly on the wall and enable the deployment of well-known Ethernet technology even in industrial environments. They are also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).
Possible monitoring withCloudViewer mobile application.
BASIC SPECIFICATIONS
Physical properties:
Ports: 16× GbE RJ-45, 4× 10G Base-SR/LR SFP+, 1× USB-C console port, 2× digital input DI, 2× digital output DO
Memory: 16k MAC addresses, 12 Mb buffer
Throughput: 112 Gbps bus, operational 83.3 Mpps (64B)
Transmission support: JumboFrame 12 kB
IP protocol version: IPv4, IPv6
Design: DIN rail, wall-mounted
Power supply: dual, DC 9-48 V or AC 24 V, power consumption up to 15.36 W
Protection: ESD up to 6 kV DC (contact), up to 8 kV (air)
Operating temperature: -40 to +75 °C, humidity up to 95%
Dimensions: 152 × 135 × 86 mm
Weight: 1403g
Administration functions:
Management: Console, Web, Telnet, SNMP v1/v2c/v3, SSH v2, TLS v1.3
Access Control: IP/MAC-based ACL (ACL/ACE) protocol
ACL filter and bonding:
IP ACL, traffic filtering by IP address
MAC ACL, traffic filtering by MAC address
QoS traffic prioritization: 8 levels (port number, 802.1p priority, DSCP/IP priority of IPv4/IPv6 packets), support for Ingress/Egress limit, traffic classification based on strict priority and WRR
VLAN support:
IEEE 802.1Q (VLAN tagging)
up to 256 VLAN groups, up to 4094 VLAN IDs
Q-in-Q tunneling (802.1ad)
Voice VLAN
VLAN Protocol
VLAN management
Private VLAN (Protected port)
GVRP
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol, by VLAN
STP BPDU Guard, BPDU filtering and BPDU forwarding
Port mirroring: RX, TX, RX+TX, many to one, up to 4 sessions
Link Aggregation: IEEE 802.3ad LACP and Static Trunk, up to 8 ports in 8 groups
IGMP multicast: IGMP v2/v3, up to 256 groups, IGMP querier mode support, MLD snooping v2, v3
Authentication of connected devices: IEEE 802.1x, RADIUS/TACACS+
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling diagnostics: yes (SFP-DDM - Digital Diagnostic Monitor)
Industrial properties:
The device is drop resistant (IEC-60068-2-32) from a height of 75 cm on all impact parts
the device is vibration resistant (IEC-60068-2-6)
The device is resistant to overload, short-term acceleration 50g, long-term 4g (IEC-60068-2-27)
