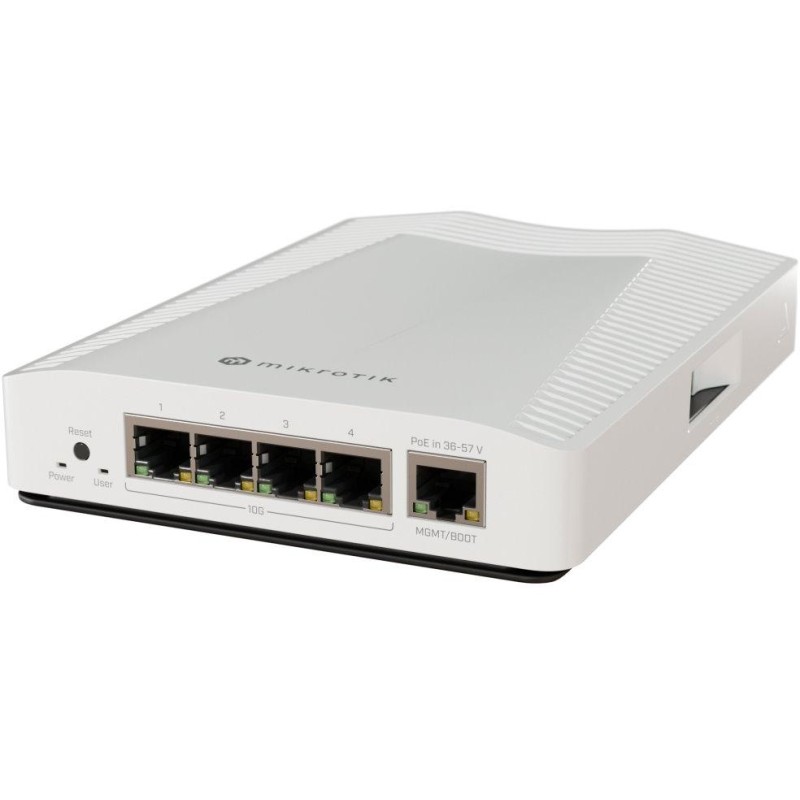

MikroTik Cloud Router Switch CRS304-4XG-IN, 1x GbE, 4x 10 GbE, Dual PSU, Dual boot, incl. L5

MikroTik CRS304-4XG-IN Cloud Router Switch CRS304-4XG-IN comes in a durable, lightweight housing and offers 4× 10GbE RJ-45 and 1× 1GbE RJ-45 ports, fanless design. It has an ARM 64bit processor with Marvell Prestera switch chip (98DX2528), 512 MB RAM and 32 MB FLASH storage. It offers features such as port forwarding, broadcast storm control, MAC filtering, VLAN, traffic mirroring, bandwidth limiting, L3 hardware offloading. The switch has power backup (two sources). It provides four different power options: two DC connectors (12–57 V), 2-pin terminal block (12–57 V) and PoE-in. The switch automatically selects the power source with the highest voltage, ensuring uninterrupted operation. It supports both passive (36–57 V) and active (802.3at/af) PoE power supply. The package includes a DIN rail adapter and a power supply (48 V/ 0.95 A). The device has Dual boot, i.e. it allows you to choose between the RouterOS and SwOS operating systems. SwOS is ideal for setting switching functions. The advantage is that all options in SwOS work in hardware mode, so you cannot accidentally activate software mode, which can significantly reduce the device's performance. For more complex configurations or just for the ability to set up the device via winbox, the RouterOS system is suitable. You can select the desired operating system directly in RouterOS or SwOS or from the RouterBOOT loader. Information about the MikroTik RouterOS system If you are starting with MikroTik RouterOS or if you need advice on more complex settings, you can use our support. You can learn how to set up and manage the RouterBoard at our training courses. Setup tips and frequently asked questions can be found in the Technical Support section. All RouterBoards have the same RouterOS MikroTik system. All devices with RouterOS MikroTik fully support IPv6, have a firewall, Queues, NAT and with an L4 license support the CAPsMAN server. MikroTik can be configured via a web interface, via a mobile application, or with the winbox program, which can be downloaded from mikrotik.com. MikroTik has a "Quick Set" option, i.e. a quick setup option. There are several preset profiles to choose from. BASIC SPECIFICATIONS Ports: 4× 10GbE RJ-45, 1× GbE RJ-45 Switching capacity: 80 Gbps Routing speed: 59.5 Mpps PoE support: yes, 802.3af/at (max. 21 W) Dimensions: 176 × 128 × 35 mm Useful links and videos: Declaration of conformity + user manual Device setup via Quick Set quick guide Mobile phone control application Device reset, reset button function MikroTik RouterOS system recovery via Netinstall utility Address translation (NAT) setup Load Balancing setup (distribution of traffic between multiple Internet connections) Failover setup (switching a link to a backup in case of an outage) Multiple uplinks using PCC & Load balancing Static NAT & RouterOS MikroTips: Netinstall
