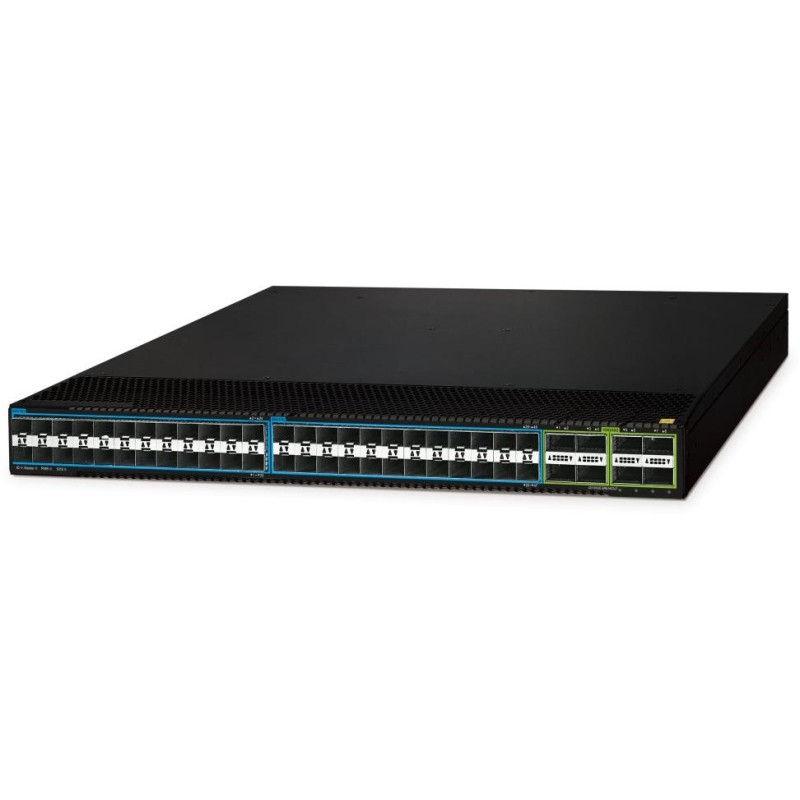

PLANET DCS-7342-48Y8C
Datacenter L3 switch for professional network traffic management, 48× 25G SFP28, 8× 40/100G QSFP28 , RJ-45 to DB9 console port for basic switch management and settings, 1× USB 2.0.
It stands out with comprehensive functions at layer 2, 3 and 4, high level of security, OSPF v2/v3, IS-IS, RIPng (next generation), BGP, BGP4/4+ , DHCP/DHCPv6, ACL, GRE tunneling, IPv6 Telnet, IPv6 Neighbor Discovery, Path MTU Discovery, VRRP support, BFD, VLAN 802.1Q, VLAN 802.1ad, STP/RSTP/MSTP, Multicast IGMP v3, PIM-DM, 802.3ad LACP duplication, QoS, Bandwidth control . Possible hardware stack of two devices in virtual ring mode.
Console management/Telnet/SNMP, SSH, RADIUS and TACACS+ support, ACL filter, DHCP snooping, DHCP Option 43/60/82, DDoS and TCP protection. Hot-swappable fans , automatic adjustment of cooling performance based on temperature. Redundant power system , 2× 800W power supply, support for 1+1 mode and hot-swap, rackmount 19"/1U.
A distribution backbone switch for application in the most demanding data infrastructures, featuring advanced network algorithms and security features. It is designed for deployment in data centers, corporate companies or metropolitan networks. Full throughput guarantees effective availability of the network or network resources for operations conducted or controlled through it.
The switch is an L3 router with support for RIP and OSPF protocols, has an advanced ACL (Access Control List) filter that allows you to control traffic based on MAC or IP address detection, TCP/UDP protocol, IP priority from traffic passing through the switch, you can set up authentication of physical ports using the RADIUS mechanism IEEE 802.1x. The device is managed via a WEB browser or via the SNMP protocol with SSH/TLS/SSL security options.
In general, you can define the bandwidth for each port with support for both WRR (Weighted Round Robin) and SP (Strict priority) control, you can modify DSCP/ToS and CoS values, and you can classify traffic based on pass-through port, VLAN, DSCP, IP/MAC preference, or ACL rules.
BASIC SPECIFICATIONS
Physical properties:
Ports: 48× 25G SFP28 (backward compatible with 10G SFP+), 8× 100G QSFP28 (backward compatible with 40G QSFP+), 1× RJ-45 (serial) console port, 1× RJ-45 management port, 1× USB 2.0
Memory: 96k MAC addresses, 10 MB buffer
Throughput: 4 Tbps bus, 2000 Mpps operational
Transmission support: JumboFrame 9k
Design: 1U rack
Power supply: redundant, 2× internal AC 100–240 V (50 Hz ± 10%), power consumption up to 207 W
Protection: no
Operating temperature: 0 to +50 °C
Dimensions: 440 × 420 × 44 mm
Weight: 8.1 kg
Administration functions:
Management: Console, Telnet, SNMP v1/v2c/v3, SSH, NETCONF, RMON, BootROM
Access Control: IP/MAC/Time-based ACL protocol, support standard and extended ACL filter
L3 functions: static routing, RIPng, OSPF v2/v3, BGP/BGP4+, VRRP, IS-IS, Policy routing, BFD
ACL filter and bonding: IP ACL, traffic filtering by IP address, protocol, port, TCP flags
MAC ACL, traffic filtering by MAC address, by VLAN ID and by combination of priority flags
Time ACL, traffic filtering by time
QoS traffic prioritization: 8 priority queues on all ports, Ingress/Egress, WRR, SP, SP+WRR, 802.1p CoS, DSCP, DiffServ, TOS
VLAN support:
802.1Q
802.1ad Q-in-Q tunneling
Protocol-based VLAN
MAC-based VLAN
MVR (Multicast VLAN Registration)
up to 4000 VLAN groups
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Features BPDU protection, root protection, loop protection, BPDU tunneling
Port mirroring: yes
Link Aggregation: IEEE 802.3ad LACP
IP Multicast: IGMP v1/v2/v3, IGMP Fast Leave mode support
Authentication of connected devices: IEEE 802.1x (RADIUS), TACACS+ and IPv4/IPv6 via RADIUS
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices, 802.1ab LLDP)
Cabling diagnostics: yes, SFP-DDM (Digital Diagnostic Monitor)
Multi-line link aggregation (MLAG)
Static configuration and dynamic learning of MAC addresses
Viewing and deleting MAC addresses
Configurable MAC address aging time
Limited number of learnable MAC addresses
MAC address filtering
List of black-hole MAC addresses
IEEE 802.1AE MacSec
