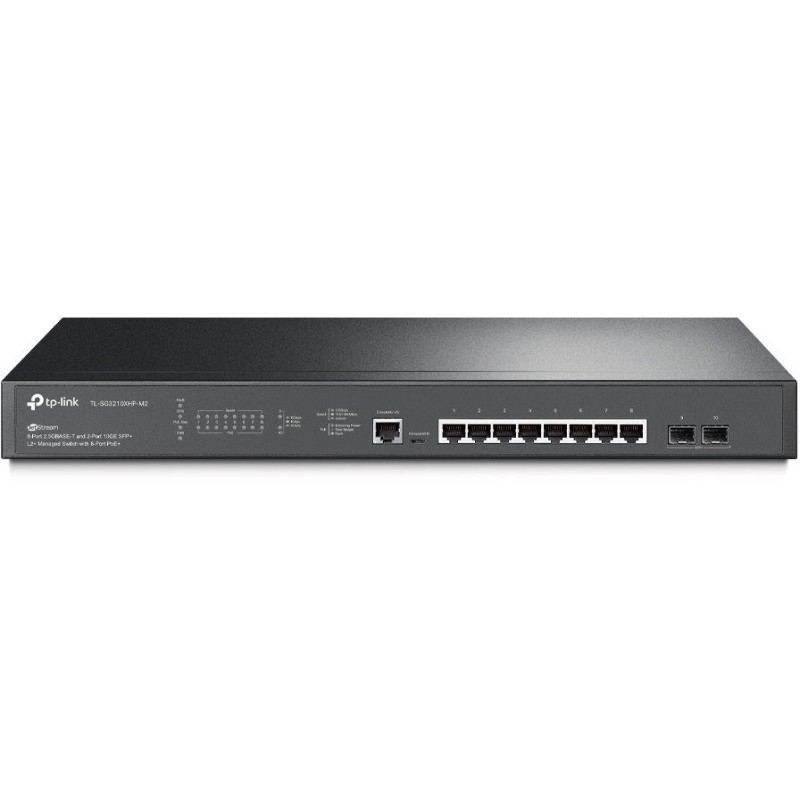

TP-Link TL-SG3210XHP-M2
JetStream managed L2+ switch with eight 2.5Gbit RJ-45 ports, two 10G SFP+ slots and PoE+ power support (PoE budget up to 240 W).
High-speed L2+ managed switch with two SFP+ uplink slots. The switch capacity is 80 Gbps and the routing speed is up to 59.52 Mpps .
Security features include IP-MAC-Port-VID binding, port security, Storm Control, and DHCP Snooping to protect against a wide range of network threats. The device has a built-in list of typical DoS attacks, making it easier than ever to protect against them. Access control (ACL, L2 to L4) also restricts access to sensitive parts of the network by denying packets based on source and destination MAC addresses, IP addresses, TCP/UDP ports, or VLAN IDs. User access to the network can be controlled using 802.1X authentication, which works with a RADIUS/TACACS+ server to grant access only to users with valid credentials.
- 2.5G PoE+ ports for Wi-Fi 6 networks: 8 2.5Gbit/s ports break the gigabit barrier and unlock the full potential of Wi-Fi 6 access points.
- Lightning-fast 10G uplink: 2 x 10Gbit/s SFP+ slots enable high-throughput broadband connectivity and non-blocking switching capacity.
- PoE with 240W power budget: 8 PoE+ ports compliant with 802.3at/af with a total power output of 240W.
- Integrated into the Omada SDN platform: Zero-Touch Provisioning (ZTP), centralized cloud management, and intelligent monitoring.
- Centralized Management: Cloud access and Omada app for maximum convenience and easy management.
- Static routing: Helps direct data flow across a local network, ensuring efficient use of network resources.
- Robust security strategy: IP-MAC binding, ACL, port security, DoS protection, Storm Control, DHCP Snooping, 802.1X and Radius authentication, and more.
- Optimized voice and video transmission in applications: L2/L3/L4 QoS and IGMP Snooping function.
BASIC SPECIFICATIONS
Ports: 2× 10G SFP+, 8× 2.5Gbit RJ-45, 1× RJ-45 console port, 1× micro USB console port
Switch capacity: 80 Gbps
Routing speed: 59.52 Mpps
PoE: yes, 802.3at/af, max. 240 W
Power supply: AC 100–240 V (50/60 Hz), power consumption up to 292 W
Dimensions: 440 × 180 × 44 mm
