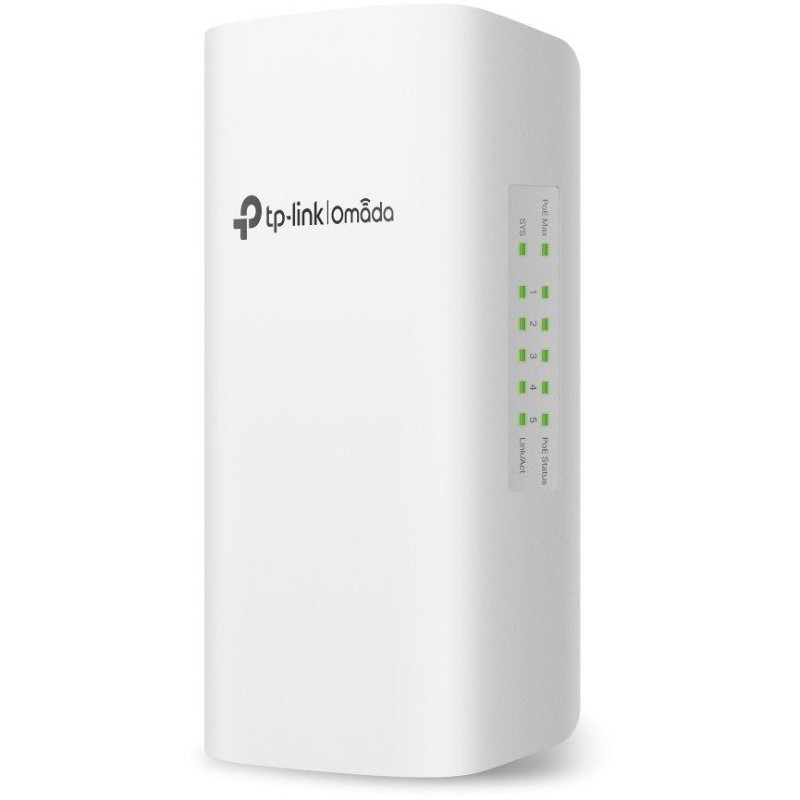

TP-Link SG2005P-PD - 5-port Omada Gigabit Smart Switch with 1 gigaport PoE++ in and 4 PoE+ out

TP-Link SG2005P-PD

The switch offers 5× GbE RJ-45 ports, of which one is a PoE++ gigabit input port and 4 PoE+ output ports with a load of up to 30 W per port and a total of max. 64 W. Data and power can be transmitted with a single cable. This solution extends the transmission distance between the PoE power source and devices to 200 m , making it a great choice for surveillance cameras and access points installed at long distances. The switching capacity reaches up to 10 Gbps and the routing speed is up to 7.44 Mpps . Network traffic control ( QoS ) offers advanced traffic management options for smoother and faster transmission of your data. The easy-to-use web management interface together with SNMP, RMON and Dual Image support speed up setup and configuration without unnecessary downtime. The IP55 -certified waterproof housing protects the switch from adverse outdoor weather conditions. You can easily mount the device on a wall or pole using the included mounting kits. The compact design allows the switch to be placed, for example, in an outdoor distribution cabinet.

•

• PoE power transmission distance up to 200m: Standard pass-through PoE doubles the transmission distance without any loss of speed.

• PoE Power Budget: 64 W when powered by 802.3bt Type 4 (90 W), 44 W when powered by 802.3bt Type 3 (60 W), 19 W when powered by 802.3at, 6 W when powered by 802.3af

• Weatherproof: The IP55 housing is waterproof, dustproof and UV-resistant. The operating temperature range of -40°C to +60°C and 4 kV lightning protection ensure stable operation even in harsh outdoor conditions.

• Easy installation: Easily mount the device on a wall or pole using the included mounting kits.

• Centralized Cloud Management: Integration with the Omada SDN platform enables cloud access, remote management, and multi-site management.

• Value-added features: static routing, access control list (ACL), QoS, and VLAN.


BASIC SPECIFICATIONS

Number of ports: 5× GbE RJ-45

Switch capacity: 10 Gb/s

Routing speed: 7.44 Mpps

PoE output: 4× 802.3at/af

PoE input: 1× 802.3af/at/bt

Max. power consumption: 71.5 W

Dimensions: 170 × 100 × 38.5 mm
